Technical Specifications
Parameters and characteristics for this part
| Specification | XLR431 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Fastening Type | Latch Lock |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | XLR |
| Voltage Rating | 133 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 35.83 | |
| 10 | $ 30.45 | |||
| 30 | $ 28.18 | |||
| 50 | $ 27.18 | |||
| 100 | $ 25.89 | |||
| 250 | $ 24.27 | |||
Description
General part information
XLR43 Series

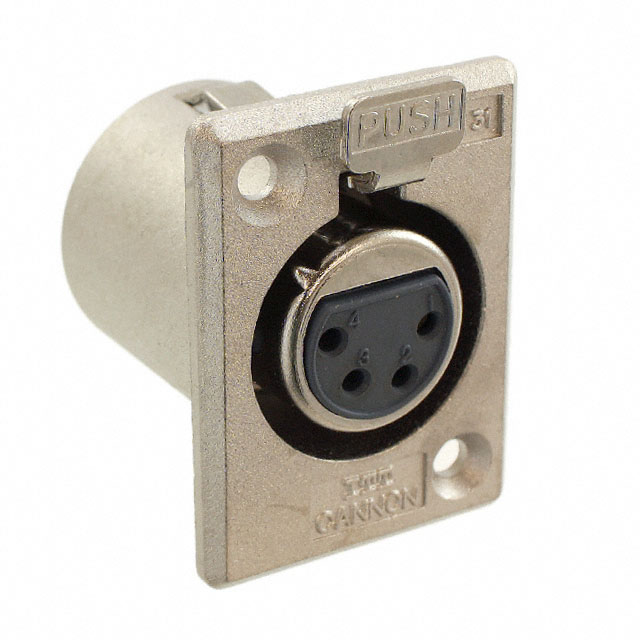

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
