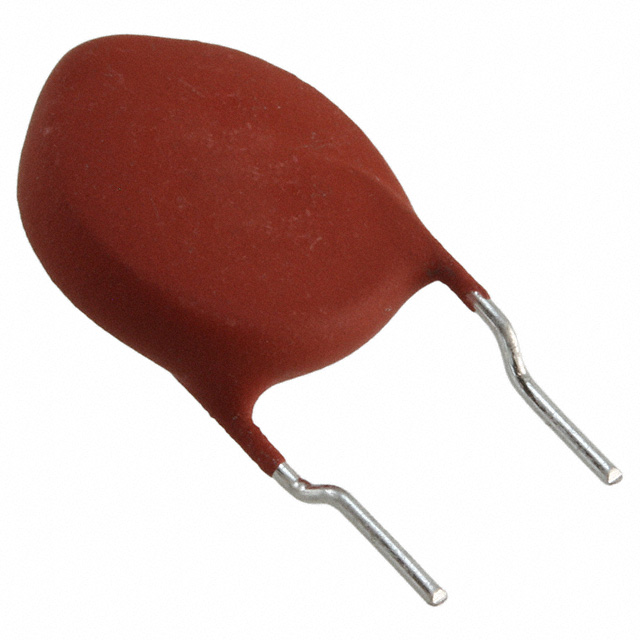

PTGL12AR150H8B72B0

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 210MA RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 210MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Max [Max]	Size / Dimension [y]	Size / Dimension	Size / Dimension [diameter]	Mounting Type	Type	Package / Case	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Current - Trip (It)	Operating Temperature [Min]	Operating Temperature [Max]	Resistance - 25°C (Typ)	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Approval Agency	Height - Seated (Max) [Max] [z]	Size / Dimension [y]
Murata Power Solutions Inc. PTGL12AR100M6C01B0	140 V	19 mm	0.748 in	1 A	0.236 in	6 mm 13 mm	0.512 in	Through Hole	Ceramic	Disc Radial	290 mA	0.394 in	10 mm	440 mA	-10 °C	60 °C	10 Ohms
Murata Power Solutions Inc. PTGL12AR0R2M1B51A0	16 V	16 mm	0.63 in	9 A			0.445 "	Through Hole	Ceramic	Disc Radial	1.3 A	0.197 in	5 mm	2.41 A	-10 °C	60 °C	200 mOhms	3.5 mm	11.3 mm	0.138 in
Murata Power Solutions Inc. PTGL12AR1R2H2B51B0	30 V	18 mm		4.3 A	0.157 in		0.472 in	Through Hole	Ceramic	Disc Radial	645 mA	0.197 in	5 mm	1.225 A	-10 °C	60 °C	1.2 Ohms		12 mm		UL	0.709 "	4 mm
Murata Power Solutions Inc. PTGL12AR5R6H4B71B0	80 V	18 mm		4.3 A	0.177 "		0.472 in	Through Hole	Ceramic	Disc Radial	350 mA	0.295 in	7.5 mm	650 mA	-10 °C	60 °C	5.6 Ohms		12 mm			0.709 "	4.5 mm
Murata Power Solutions Inc. PTGL12AR150H8B72B0	265 V	18.5 mm	0.728 in	1.5 A			0.492 in	Through Hole	Ceramic	Disc Radial	210 mA	0.295 in	7.5 mm	400 mA	-40 °C	85 °C	15 Ohms	6 mm	12.5 mm	0.236 "	UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ceramic PTC Resettable Fuse 265V 210 mA Ih Through Hole Radial, Disc
