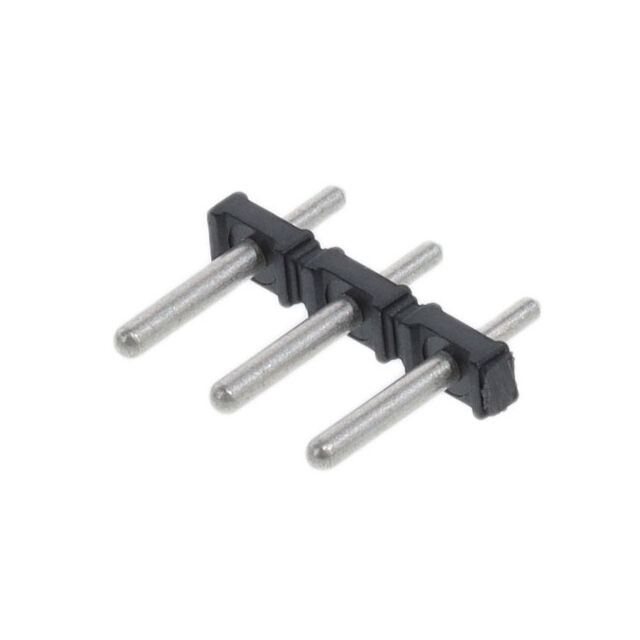

971-SLR-THR/03
ActiveWECO Electrical Connectors Inc.
PIN STRIP HEADER 3 POLE; THROUGH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
971-SLR-THR/03
ActiveWECO Electrical Connectors Inc.
PIN STRIP HEADER 3 POLE; THROUGH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 971-SLR-THR/03 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - UL | 10 A |
| Header Orientation | Vertical |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 0.07 in |
| Insulation Height | 1.78 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Header, Male Pins, Unshrouded |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.19 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| 5000 | $ 0.30 | |||
Description
General part information
971-SLR Series
3 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole
