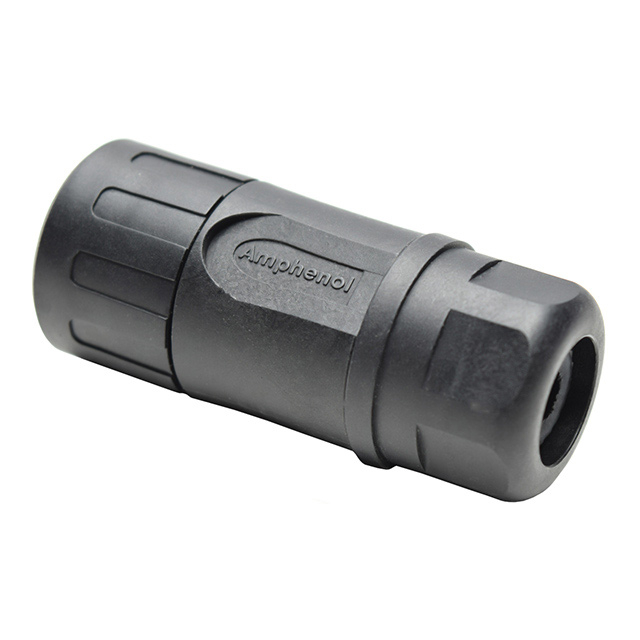

RTS6BS16N19P03

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 19POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

RTS6BS16N19P03

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 19POS INLINE

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS6BS16N19P03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Shielding	Unshielded
Type	For Male Pins

RTS6BS16 Series

Part	Insert Material	Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Fastening Type	Material Flammability Rating	Contact Type	Ingress Protection	Shielding	Mounting Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Features	Contact Shape	Note	Connector Type	Orientation	Contact Size	Number of Positions	Includes	Shell Size - Insert
Amphenol Sine Systems Corp RTS6BS16N19P03	Thermoplastic	For Male Pins	125 °C	-40 °C	Black	Bayonet Lock	UL94 V-0	Crimp	IP67 IP69K	Unshielded	Free Hanging (In-Line)	16	19	Backshell Coupling Nut	Circular	Contacts Not Included	Plug Housing	N	16	19
Amphenol Sine Systems Corp RTS6BS16N26S03	Thermoplastic	For Female Sockets	125 °C	-40 °C	Black	Bayonet Lock	UL94 V-0	Crimp	IP67 IP69K	Unshielded	Free Hanging (In-Line)	16	26	Backshell Coupling Nut	Circular	Contacts Not Included	Plug Housing	N	20	26
Amphenol Sine Systems Corp RTS6BS16N09P03	Thermoplastic	For Male Pins	125 °C	-40 °C	Black	Bayonet Lock	UL94 V-0	Crimp	IP67 IP69K	Unshielded	Free Hanging (In-Line)			Backshell Coupling Nut	Circular	Contacts Not Included	Plug Housing	N	2.5 mm 16	9
Amphenol Sine Systems Corp RTS6BS16N19SHEC03	Thermoplastic	For Female Sockets	125 °C	-40 °C	Black	Bayonet Lock	UL94 V-0	Crimp	IP67 IP69K	Unshielded	Free Hanging (In-Line)	16	19	Backshell Coupling Nut	Circular	Contacts Not Included	Plug Housing	N	16	19	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer
Amphenol Sine Systems Corp RTS6BS16N19PHEC03	Thermoplastic	For Male Pins	125 °C	-40 °C	Black	Bayonet Lock	UL94 V-0	Crimp	IP67 IP69K	Unshielded	Free Hanging (In-Line)	16	19	Backshell Coupling Nut	Circular	Contacts Not Included	Plug Housing	N	16	19	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer
Amphenol Sine Systems Corp RTS6BS16N4SHEC03	Thermoplastic	For Female Sockets	125 °C	-40 °C	Black	Bayonet Lock	UL94 V-0	Crimp	IP67 IP69K	Unshielded	Free Hanging (In-Line)			Backshell Coupling Nut	Circular	Contacts Not Included	Plug Housing	N	8	4	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	16-4
Amphenol Sine Systems Corp RTS6BS16N09PHEC03	Thermoplastic	For Male Pins	125 °C	-40 °C	Black	Bayonet Lock	UL94 V-0	Crimp	IP67 IP69K	Unshielded	Free Hanging (In-Line)			Backshell Coupling Nut	Circular	Contacts Not Included	Plug Housing	N	2.5 mm 16	9	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.02
		10	$ 11.56
		25	$ 10.45
		50	$ 9.71
		100	$ 9.03
		250	$ 8.43

Description

General part information

RTS6BS16 Series

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

Eco|mate® Aquarius™ Flyer

Datasheet
