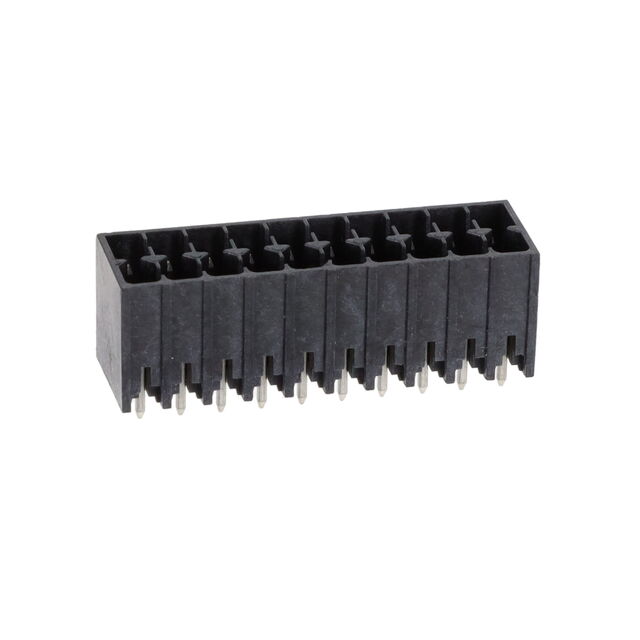

OSTNR201100

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR201100

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Header Orientation	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	11.6 mm
Insulation Height	0.457 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	20
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	10
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Number of Positions	Positions Per Level	Housing Material	Material Flammability Rating	Contact Material	Color	Contact Mating Finish	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Header Orientation	Pitch [x]	Pitch [x]	Current - UL	Voltage - UL	Number of Levels	Mounting Type	Contact Tail Length	Contact Tail Length	Features	Type
On Shore Technology Inc. OSTNR201201	20	10	Liquid Crystal Polymer (LCP)	UL94 V-0	Copper	Black	Tin	0.425 in	10.8 mm	-40 °C	115 °C	Solder	90° Right Angle	3.5 mm	0.138 in	8 A	150 V	2	Through Hole	0.079 in	2 mm	Mating Flange	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTNR201101	20	10	Liquid Crystal Polymer (LCP)	UL94 V-0	Copper	Black	Tin	0.425 in	10.8 mm	-40 °C	115 °C	Solder	90° Right Angle	3.5 mm	0.138 in	8 A	150 V	2	Through Hole	0.079 in	2 mm		Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTNR201200	20	10	Liquid Crystal Polymer (LCP)	UL94 V-0	Copper	Black	Tin	0.457 in	11.6 mm	-40 °C	115 °C	Solder	Vertical	3.5 mm	0.138 in	8 A	300 V	2	Through Hole	0.079 in	2 mm	Mating Flange	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTNR201100	20	10	Liquid Crystal Polymer (LCP)	UL94 V-0	Copper	Black	Tin	0.457 in	11.6 mm	-40 °C	115 °C	Solder	Vertical	3.5 mm	0.138 in	8 A	300 V	2	Through Hole	0.079 in	2 mm		Header Male Pins Shrouded (4 Side)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
