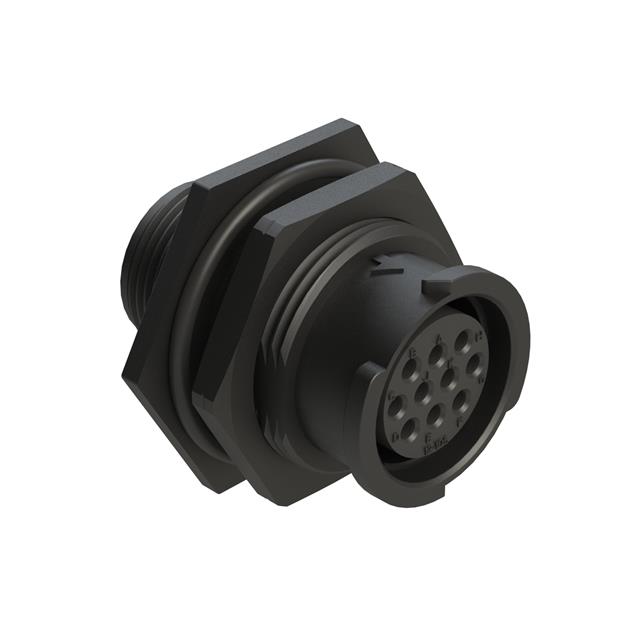

FLS712N10S03

Active

Amphenol Sine Systems Corp

10 POSITION JAM NUT RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLS712N10S03

Active

Amphenol Sine Systems Corp

10 POSITION JAM NUT RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLS712N10S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shielding	Unshielded
Type	For Female Sockets

FLS712N Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Note	Fastening Type	Orientation	Ingress Protection	Insert Material	Contact Shape	Contact Type	Shielding	Material Flammability Rating	Housing Color	Mounting Feature	Primary Material	Connector Type	Type	Number of Positions	Contact Size	Features	Contact Size
Amphenol Sine Systems Corp FLS712N2S03	125 °C	-40 °C	12-4	Contacts Not Included	Bayonet Lock	N	IP67 IP68 IP69K	Thermoplastic	Circular	Crimp	Unshielded	UL94 V-0	Black	Bulkhead - Front Side Nut	Plastic	Receptacle Housing	For Female Sockets	4	12 (2) 20 (2)
Amphenol Sine Systems Corp FLS712N3PHEC03	125 °C	-40 °C	12-3	Contacts Not Included	Bayonet Lock	N	IP67 IP68 IP69K	Thermoplastic	Circular	Crimp	Unshielded	UL94 V-0	Black	Bulkhead - Front Side Nut	Plastic	Receptacle Housing	For Male Pins			Cap (Cover)	16
Amphenol Sine Systems Corp FLS712N3P03	125 °C	-40 °C	12-3	Contacts Not Included	Bayonet Lock	N	IP67 IP68 IP69K	Thermoplastic	Circular	Crimp	Unshielded	UL94 V-0	Black	Bulkhead - Front Side Nut	Plastic	Receptacle Housing	For Male Pins				16
Amphenol Sine Systems Corp FLS712N2PHEC03	125 °C	-40 °C	12-4	Contacts Not Included	Bayonet Lock	N	IP67 IP68 IP69K	Thermoplastic	Circular	Crimp	Unshielded	UL94 V-0	Black	Bulkhead - Front Side Nut	Plastic	Receptacle Housing	For Male Pins	4	12 (2) 20 (2)	Cap (Cover)
Amphenol Sine Systems Corp FLS712N2P03	125 °C	-40 °C	12-4	Contacts Not Included	Bayonet Lock	N	IP67 IP68 IP69K	Thermoplastic	Circular	Crimp	Unshielded	UL94 V-0	Black	Bulkhead - Front Side Nut	Plastic	Receptacle Housing	For Male Pins	4	12 (2) 20 (2)
Amphenol Sine Systems Corp FLS712N3S03	125 °C	-40 °C	12-3	Contacts Not Included	Bayonet Lock	N	IP67 IP68 IP69K	Thermoplastic	Circular	Crimp	Unshielded	UL94 V-0	Black	Bulkhead - Front Side Nut	Plastic	Receptacle Housing	For Female Sockets				16
Amphenol Sine Systems Corp FLS712N10S03	125 °C	-40 °C		Contacts Not Included	Bayonet Lock	N	IP67 IP68 IP69K	Thermoplastic	Circular	Crimp	Unshielded	UL94 V-0	Black	Bulkhead - Front Side Nut	Plastic	Receptacle Housing	For Female Sockets	10			20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.31
		10	$ 10.03
		25	$ 9.64
		50	$ 9.25
		100	$ 8.74
		250	$ 7.97
		500	$ 7.45
		1000	$ 6.84

Description

General part information

FLS712N Series

10 Position Circular Connector Receptacle Housing Panel Mount
