PJQ1820_R1_00001

NRND

Panjit International Inc.

MOSFET 2N-CH 20V 0.8A 6DFN

Search across all available documentation for this part.

NRND

Panjit International Inc.

MOSFET 2N-CH 20V 0.8A 6DFN

Technical Specifications

Parameters and characteristics for this part

Specification	PJQ1820_R1_00001

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	800 mA
Drain to Source Voltage (Vdss)	20 V
Gate Charge (Qg) (Max) @ Vgs	1.1 nC
Input Capacitance (Ciss) (Max) @ Vds	46 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-UFDFN
Rds On (Max) @ Id, Vgs	300 mOhm

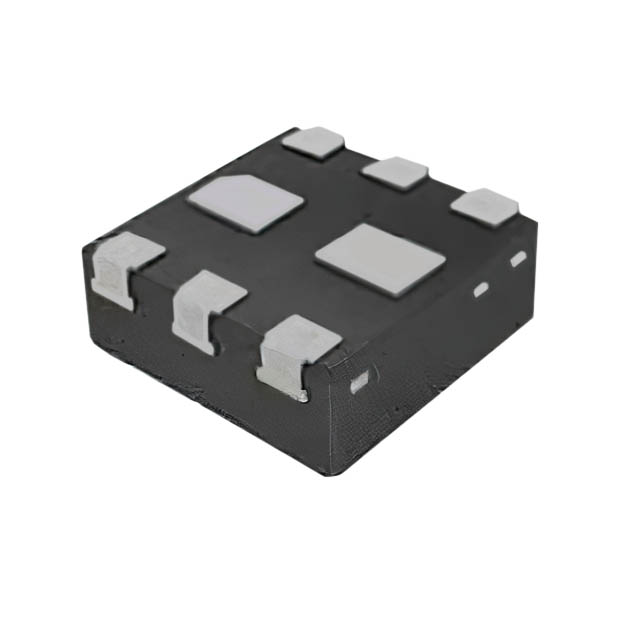

Supplier Device Package	DFN1010-6L
Vgs(th) (Max) @ Id	1 V

Part	Configuration	Package / Case	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C
Panjit International Inc. PJQ1820_R1_00001	2 N-Channel (Dual)	6-UFDFN	300 mOhm	1 V	46 pF	1.1 nC	DFN1010-6L	Surface Mount	-55 °C	150 °C	20 V	800 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 20V 800mA (Ta) 400mW (Ta) Surface Mount DFN1010-6L
