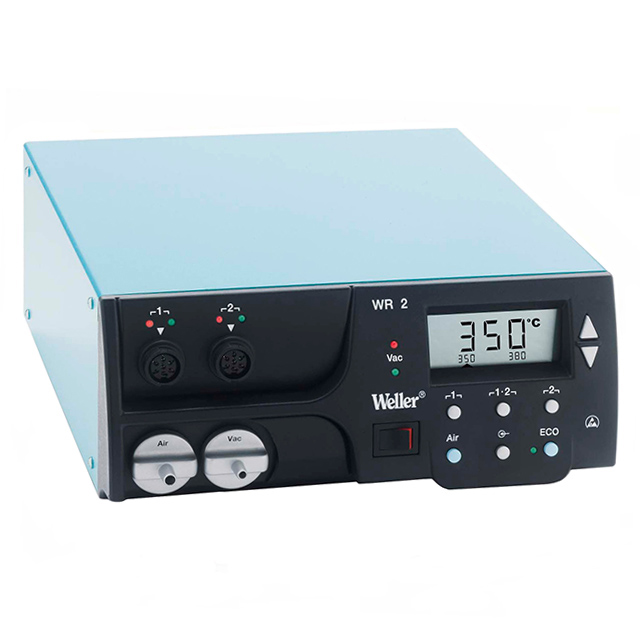

WR2N

Apex Tool Group

SOLDER REWORK STA 300W 2 CH 120V

Search across all available documentation for this part.

Apex Tool Group

SOLDER REWORK STA 300W 2 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WR2N

Base Unit	WR2
Control/Display Type	Digital
Features	Internal Air, ESD Safe, LCD Display, Vacuum, Programmable
Number of Channels [custom]	2
Plug Type	NEMA 5-15
Supplied Tips/Nozzles	Sold Separately
Temperature Range [Max]	850 °F
Temperature Range [Max]	454 °C
Temperature Range [Min]	93 °C
Temperature Range [Min]	200 °F
Type	Desoldering, Soldering, Rework
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	300 W

Part	Base Unit	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Type	Supplied Tips/Nozzles	Features	Control/Display Type	Voltage - Output	Voltage - Input	Number of Channels [custom]	Plug Type	Wattage
Apex Tool Group WR2N	WR2	93 °C	850 °F	200 °F	454 °C	Desoldering Rework Soldering	Sold Separately	ESD Safe Internal Air LCD Display Programmable Vacuum	Digital	24 V	120 V	2	NEMA 5-15	300 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1580.00

General part information

SOLDER REWORK STA 300W 2 CH 120V

Technical documentation and resources
