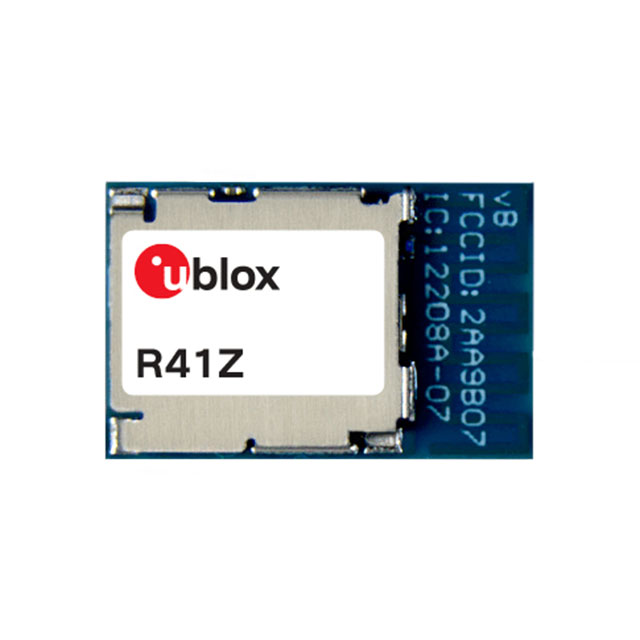

R41Z-TA-R
Activeu-blox
RF TXRX MODULE BT TRACE ANT SMD
Deep-Dive with AI
Search across all available documentation for this part.
R41Z-TA-R
Activeu-blox
RF TXRX MODULE BT TRACE ANT SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R41Z-TA-R |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 16.2 mA |
| Current - Transmitting | 14.2 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 128 kB |
| Modulation | GFSK, O-QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 3.5 dBm |
| Protocol | Thread, Bluetooth v4.2 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -100 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Utilized IC / Part | KW41Z |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 15.92 | |
| 10 | $ 14.33 | |||
| 50 | $ 12.89 | |||
| 100 | $ 12.34 | |||
| Digi-Reel® | 1 | $ 15.92 | ||
| 10 | $ 14.33 | |||
| 50 | $ 12.89 | |||
| 100 | $ 12.34 | |||
| Tape & Reel (TR) | 1000 | $ 11.60 | ||
Description
General part information
R41Z Series
802.15.4, Bluetooth Bluetooth v4.2, Thread Transceiver Module 2.4GHz Integrated, Trace Surface Mount
