XPGDPR-L1-0000-00F01

Cree LED

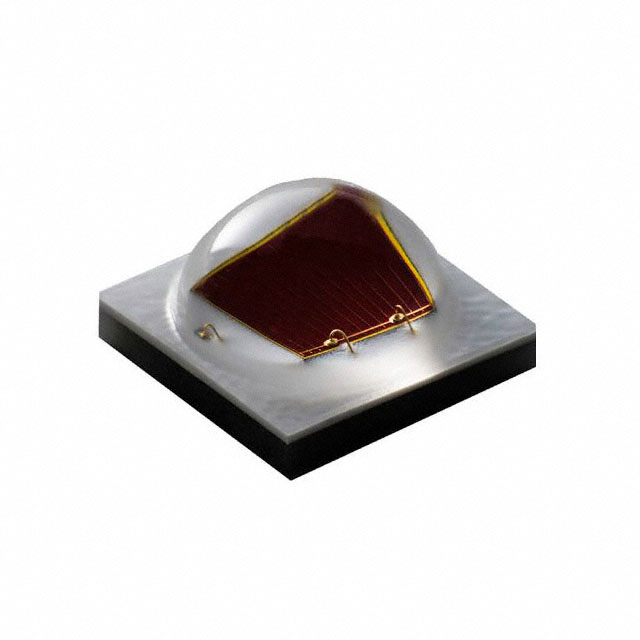

LED XLAMP XPG3 RED 645NM SMD

Search across all available documentation for this part.

Cree LED

LED XLAMP XPG3 RED 645NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XPGDPR-L1-0000-00F01

Color	Red
Current - Max [Max]	1.5 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "
Luminous Flux @ Current/Temperature	513 mW
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Supplier Device Package	SMD
Thermal Resistance of Package	2.5 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	1.99 V
Wavelength	645 nm

Part	Mounting Type	Package / Case	Package / Case	Supplier Device Package	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Current - Test	Wavelength	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Thermal Resistance of Package
Cree LED XPGDPR-L1-0000-00E01	Surface Mount	3535 Metric	1414	1414	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	488 mW	500 mW	475 mW	350 mA	645 nm	125 °	1.99 V	2.39 mm	0.094 "	Red
Cree LED XPGDPR-LS-0000-00F01	Surface Mount	3535 Metric	1414	SMD	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	500 mW			350 mA	645 nm	125 °	1.95 V	2.39 mm	0.094 "	Red
Cree LED XPGDPR-L1-0000-00F01	Surface Mount	3535 Metric	1414	SMD	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	513 mW			350 mA	645 nm	125 °	1.99 V	2.39 mm	0.094 "	Red	2.5 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Xlamp® XP-G3 Red 645nm (Typ) 1414 (3535 Metric)
