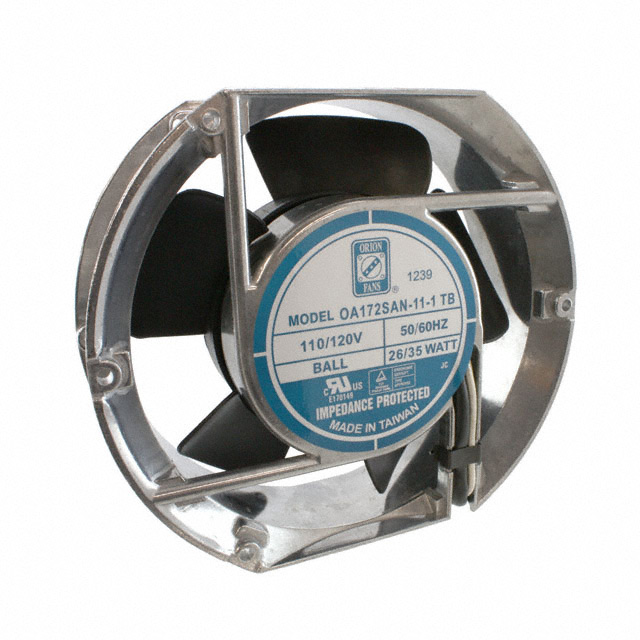

OA172SAN-11-1TB

Active

Orion Fans

FAN AXIAL 172X50.8MM 115VAC TERM

Search across all available documentation for this part.

Active

Orion Fans

FAN AXIAL 172X50.8MM 115VAC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	OA172SAN-11-1TB

Air Flow	235 CFM
Air Flow	6.58 m³/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	52 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	35 W
RPM	3200 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.7 in H2O
Static Pressure	174.4 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	80 VAC
Width [y]	51 mm

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	RPM	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Width [y]	Static Pressure	Static Pressure	Bearing Type	Material - Blade	Fan Type	Termination	Air Flow	Air Flow	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Features	Power (Watts)
Orion Fans OA172SAN-22-1WB	Aluminum	260 VAC	160 VAC	230 VAC	3200 RPM	52 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	51 mm	0.7 in H2O	174.4 Pa	Ball	Polybutylene Terephthalate (PBT)	Tubeaxial	2 Wire Leads	235 CFM	6.58 m³/min	Rectangular/Rounded	150 mm	172 mm	Capacitor Thermal Overload Protector (TOP)	35 W
Orion Fans OA172SAN-11-2WB	Aluminum	130 VAC	80 VAC	115 VAC	2400 RPM	42 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	51 mm	0.49 in H2O	122.1 Pa	Ball	Polybutylene Terephthalate (PBT)	Tubeaxial	2 Wire Leads	170 CFM	4.76 m³/min	Rectangular/Rounded	150 mm	172 mm	Capacitor Thermal Overload Protector (TOP)	20 W
Orion Fans OA172SAN-22-1TB	Aluminum	260 VAC	160 VAC	230 VAC	3200 RPM	52 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	51 mm	0.7 in H2O	174.4 Pa	Ball	Polybutylene Terephthalate (PBT)	Tubeaxial	2 Terminals	235 CFM	6.58 m³/min	Rectangular/Rounded	150 mm	172 mm	Capacitor Thermal Overload Protector (TOP)	35 W
Orion Fans OA172SAN-11-1TB	Aluminum	130 VAC	80 VAC	115 VAC	3200 RPM	52 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	51 mm	0.7 in H2O	174.4 Pa	Ball	Polybutylene Terephthalate (PBT)	Tubeaxial	2 Terminals	235 CFM	6.58 m³/min	Rectangular/Rounded	150 mm	172 mm	Capacitor Thermal Overload Protector (TOP)	35 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 235.0 CFM (6.58m³/min) 2 Terminals
