2HT-750-2-YL-S-2

Unknown

BRADY

SLEEVE, 0.75 IN DIA X 1 IN W

Search across all available documentation for this part.

Unknown

BRADY

SLEEVE, 0.75 IN DIA X 1 IN W

Technical Specifications

Parameters and characteristics for this part

Specification	2HT-750-2-YL-S-2

Color	Yellow
Label Size [Max]	17.8 mm
Label Size [Max]	0.7 "
Label Size [Min]	9.5 mm
Label Size [Min]	0.38 "
Label Size [x]	1 in
Label Size [x]	25.4 mm
Label Size [y]	1.25 "
Label Size [y]	31.8 mm
Label Type	Heat Shrinkable
Material	Polyvinylidene Fluoride (PVDF)
Operating Temperature [Max]	225 °C
Operating Temperature [Min]	-55 °C

Part	Label Type	Label Size [y]	Label Size [Min]	Label Size [Max]	Label Size [x]	Color	Material	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [diameter]	Label Size [y]	Label Size [Min]	Label Size [diameter]	Label Size [Max]	Label Size [x]
BRADY 2HT-750-2-WT-J	Heat Shrinkable	1.25 " 31.8 mm	0.38 in 9.5 mm	0.7 in 17.8 mm	50.8 mm	White	Polyvinylidene Fluoride (PVDF)	-55 °C	225 °C
BRADY 2HT-750-2-YL-S	Heat Shrinkable		0.38 in 9.5 mm	0.7 in 17.8 mm	50.8 mm	Yellow	Polyvinylidene Fluoride (PVDF)	-55 °C	225 °C	0.75 in 19.1 mm
BRADY 2HT-750-2-BK-S-2
BRADY 2HT-750-2-WT-S-2
BRADY 2HT-750-2-WT-S	Heat Shrinkable					White	Polyvinyl Fluoride	-55 °C	225 °C		2 "	0.25 "	0.75 "	0.7 "
BRADY 2HT-750-2-YL-S-2	Heat Shrinkable	31.8 mm	9.5 mm	17.8 mm	25.4 mm	Yellow	Polyvinylidene Fluoride (PVDF)	-55 °C	225 °C		1.25 "	0.38 "		0.7 "	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 599.92

General part information

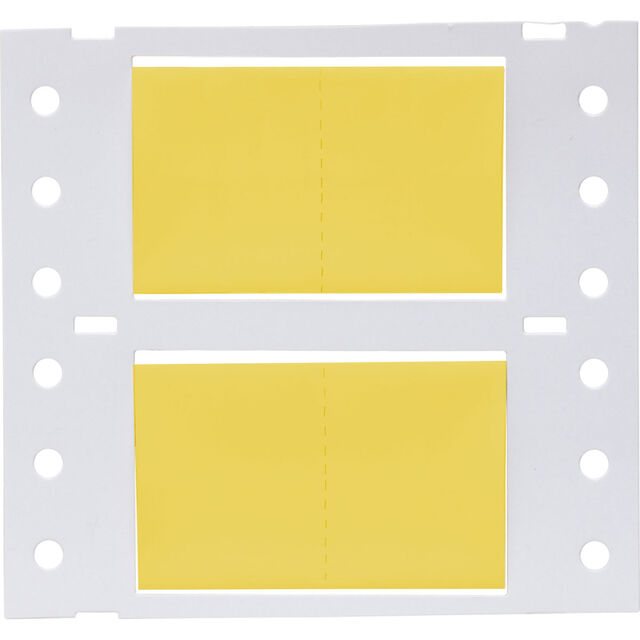

Yellow Heat Shrinkable Label 1.00" W x 1.25" H (25.4mm x 31.8mm); Cable O.D. 0.38" ~ 0.70" (9.5mm ~ 17.8mm)
