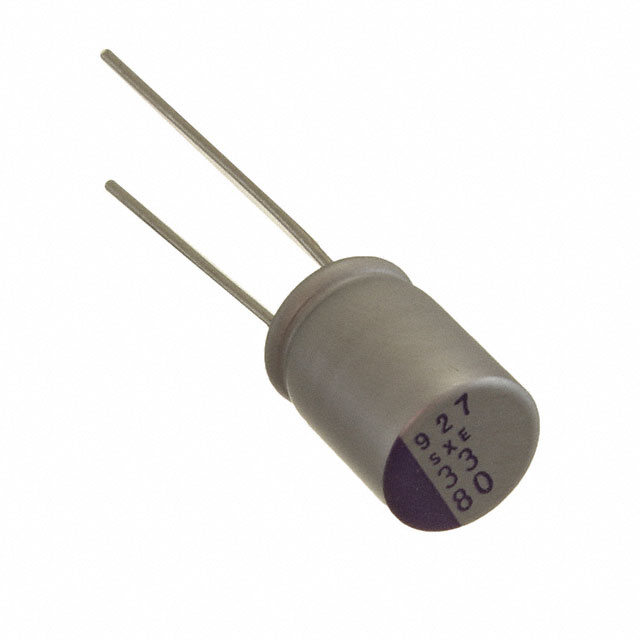

100SXE15MX

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 15UF 20% 100V TH

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 15UF 20% 100V TH

Technical Specifications

Parameters and characteristics for this part

Specification	100SXE15MX

Applications	General Purpose
Capacitance	15 µF
ESR (Equivalent Series Resistance)	60 mOhms
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	2 A
Ripple Current @ Low Frequency	100 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	100 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Lifetime @ Temp.	Ripple Current @ High Frequency	Mounting Type	Voltage - Rated	Lead Spacing	Lead Spacing	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ripple Current @ Low Frequency	Tolerance	ESR (Equivalent Series Resistance)	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 100SXE22M	10 mm	0.394 in	13 mm	0.512 "	22 µF	1000 Hrs	3 A	Through Hole	100 V	5 mm	0.197 in	Polymer	-55 °C	125 °C	Radial Can	150 mA	20 %	30 mOhms	General Purpose
Panasonic Industrial Automation Sales 100SXE27M	10 mm	0.394 in	13 mm	0.512 "	27 µF	1000 Hrs	3 A	Through Hole	100 V	5 mm	0.197 in	Polymer	-55 °C	125 °C	Radial Can	150 mA	20 %	30 mOhms	General Purpose
Panasonic Industrial Automation Sales 100SXE6R8M	8 mm	0.315 "			6.8 ÁF	1000 Hrs	1.1 A	Through Hole	100 V	3.5 mm	0.138 in	Polymer	-55 °C	125 °C	Radial Can		20 %	60 mOhms	General Purpose	7 mm	0.276 "
Panasonic Industrial Automation Sales 100SXE15M	8 mm	0.315 "	12 mm	0.472 "	15 µF	1000 Hrs	2.35 A	Through Hole	100 V	3.5 mm	0.138 in	Polymer	-55 °C	125 °C	Radial Can	117.5 mA	20 %	40 mOhm	General Purpose
Panasonic Industrial Automation Sales 100SXE15MX	10 mm	0.394 in	8 mm	0.315 in	15 µF	1000 Hrs	2 A	Through Hole	100 V	5 mm	0.197 in	Polymer	-55 °C	125 °C	Radial Can	100 mA	20 %	60 mOhms	General Purpose
