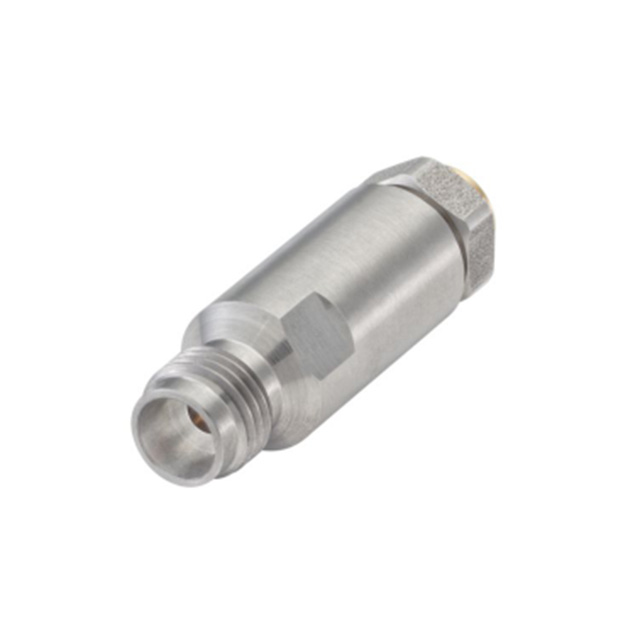

09K121-271S3

Active

Rosenberger

CONN RPC2.40 JACK STR 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC2.40 JACK STR 50OHM

Technical Specifications

Parameters and characteristics for this part

Part	Impedance	Adapter Series	Adapter Type	Mating Cycles	Mounting Type	Style	Center Gender	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Dielectric Material	Conversion Type	Frequency - Max [Max]	Center Contact Material	Convert From (Adapter End)	Convert To (Adapter End)	Insertion Loss	Specifications	Type	Accessory Type	For Use With/Related Products	Shield Termination	Connector Type	Voltage Rating	Connector Style	Connector Style	Connector Style	Number of Ports	Contact Termination	Housing Color
Rosenberger 09K121-K00S3	50 Ohms	RPC-2.40	Jack to Jack	500	Free Hanging (In-Line)	Straight	Female to Female	Gold	85 °C	-40 °C	Stainless Steel	Polyetheretherketone (PEEK)	Same Series	50 GHz	Beryllium Copper	2.4 mm	2.4 mm	0.35 dB
Rosenberger 09K121-K20S3																			2.40 Jack Jack	Specialized	Calibration Adapter	Network Analyzer
Rosenberger 09K121-271S3	50 Ohms			500	Free Hanging (In-Line)			Gold	85 °C	-40 °C	Stainless Steel	Polyetheretherketone (PEEK)		50 GHz	Beryllium Copper								Solder	Female Socket Jack	150 VDC	OS-50	2.4 mm	APC-2.4	1	Solder	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	5	$ 244.41

General part information

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
