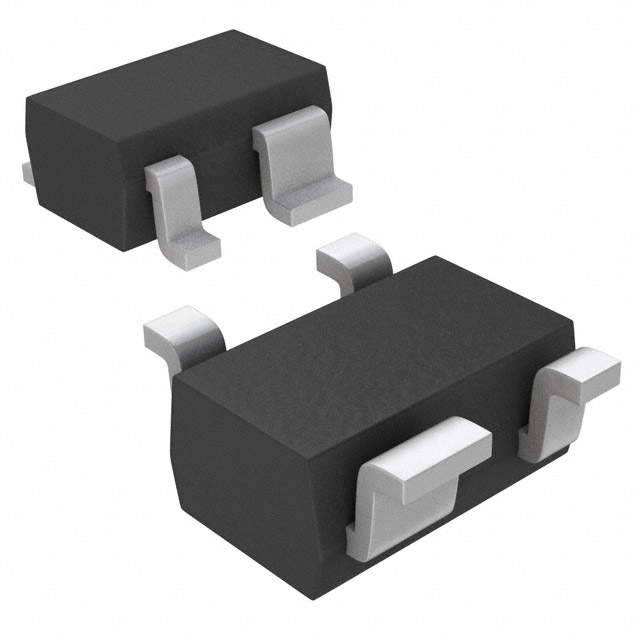

SR05

Obsolete

SMC Diode Solutions

TVS DIODE 5VWM 20VC SOT143

Search across all available documentation for this part.

Obsolete

SMC Diode Solutions

TVS DIODE 5VWM 20VC SOT143

Technical Specifications

Parameters and characteristics for this part

Specification	SR05

Applications	USB, Ethernet
Capacitance @ Frequency	6.5 pF
Current - Peak Pulse (10/1000µs)	25 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	TO-253-4, TO-253AA
Power - Peak Pulse	500 W
Power Line Protection	True
Supplier Device Package	SOT-143
Type	Zener
Unidirectional Channels	2
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	20 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Supplier Device Package	Power Line Protection	Current - Peak Pulse (10/1000µs)	Mounting Type	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Applications	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels
SMC Diode Solutions SR05	6 V	6.5 pF	SOT-143		25 A	Surface Mount	5 V	125 ¯C	-55 °C	Zener	TO-253-4 TO-253AA	Ethernet USB	500 W	20 V	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20V Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143
