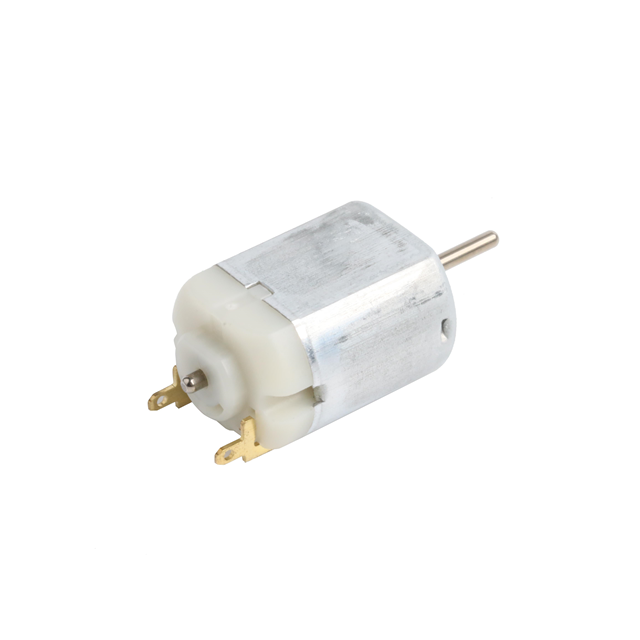

NF123G-302

Obsolete

Johnson Motor

LOW VOLTAGE DC MOTORS

Search across all available documentation for this part.

Obsolete

Johnson Motor

LOW VOLTAGE DC MOTORS

Technical Specifications

Parameters and characteristics for this part

Specification	NF123G-302

Diameter - Shaft [diameter]	2 mm
Diameter - Shaft [diameter]	0.079 in
Function	Standard
Motor Type	Brushed
Mounting Hole Spacing	0.488 in
Mounting Hole Spacing	12.4 mm
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
RPM	19467 RPM
Size / Dimension	Round
Size / Dimension [diameter]	20.32 mm
Size / Dimension [diameter]	0.8 in
Termination Style	Solder Tab
Torque - Rated (oz-in / mNm)	0.16 oz-in
Torque - Rated (oz-in / mNm)	1.13 mNm
Type	DC Motor
Voltage - Rated	9 V

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Motor Type	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Function	Type	Termination Style	RPM
Johnson Motor NF123G-302	55 °C	-10 °C	20.32 mm	Round	0.8 in	Brushed	0.488 in	12.4 mm	9 V	2 mm	0.079 in	0.16 oz-in	1.13 mNm	Standard	DC Motor	Solder Tab	19467 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Brushed DC Motor Standard 19467 RPM 7.4W 9VDC

Technical documentation and resources

No documents available
