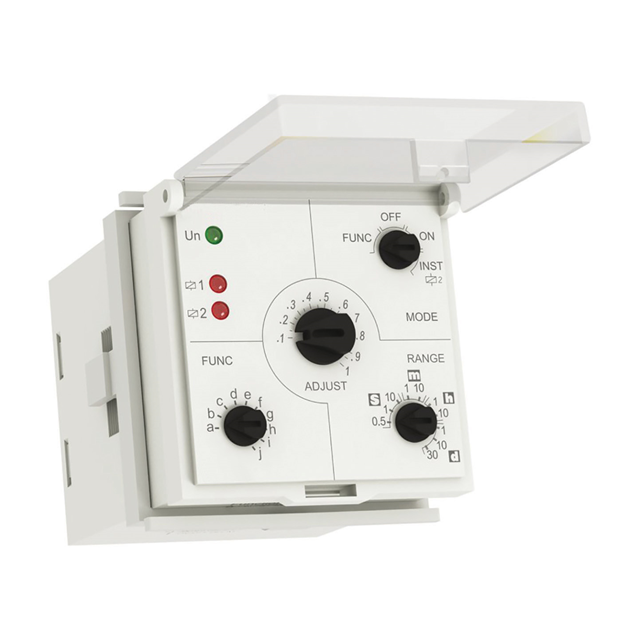

RELAY TIME DELAY 720HR 16A 250V

Search across all available documentation for this part.

Active

Peltec Timers and Controls

RELAY TIME DELAY 720HR 16A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	505

Circuit	2
Contact Rating @ Voltage	16 A, 24 VDC, 250 VAC
Delay Time [Max]	720 Hrs
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	12 VAC

Part	Relay Type	Coil Voltage [Min]	Coil Voltage [Max]	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Type	Contact Form	Switching Voltage	Contact Rating (Current)	Voltage - Supply [Max]	Voltage - Supply [Min]	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Function	Circuit	Contact Rating @ Voltage	Timing Adjustment Method
Peltec Timers and Controls 4308U	General Purpose	12 VAC/DC	240 VAC	Diode	DIN Rail	55 °C	-20 C	Screw Terminal	Non Latching	3PDT (3 Form C)	24 VDC 250 VAC	8 A
Peltec Timers and Controls 503	Mechanical Relay				Socketable			Plug In 11 Pin (Octal)					240 VAC	12 VAC	Input Voltage Trigger Signal	0.05 Sec	720 Hrs	Programmable (Multi-Function)	2	16 A 24 VDC 250 VAC	Hand Dial
Peltec Timers and Controls 191	Mechanical Relay				DIN Rail			Screw Terminal					240 VAC	12 VAC	Input Voltage	0.1 Sec	10 Days	Programmable (Multi-Function)		16 A 24 VDC 250 VAC	Screwdriver Slot
Peltec Timers and Controls 505	Mechanical Relay				Socketable			Plug In 11 Pin (Octal)					240 VAC	12 VAC	Input Voltage Trigger Signal	0.05 Sec	720 Hrs	Programmable (Multi-Function)	2	16 A 24 VDC 250 VAC	Hand Dial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) x 2 0.05 Sec ~ 720 Hrs Delay 16A @ 250VAC/24VDC Socketable
