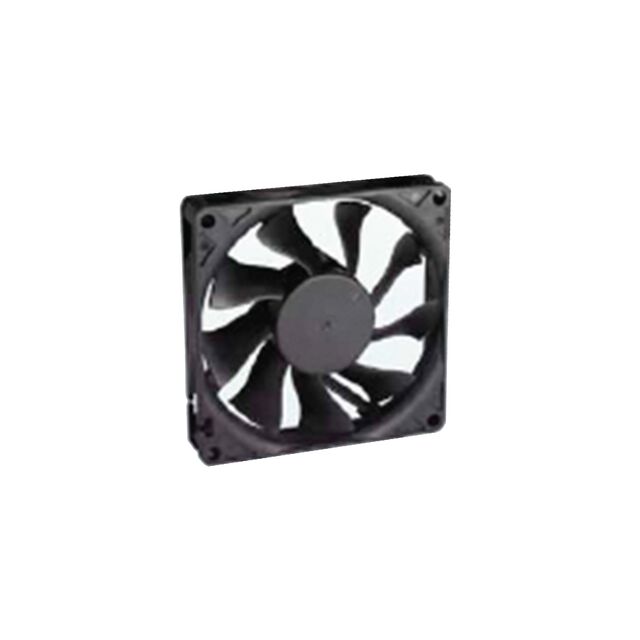

YW08015012BL-12(Q)
ActiveYS TECH USA
FAN AXIAL 80X15MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YW08015012BL-12(Q)
ActiveYS TECH USA
FAN AXIAL 80X15MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YW08015012BL-12(Q) |
|---|---|
| Air Flow | 0.658 mł/min |
| Air Flow | 23.5 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 70 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 19 dB(A) |
| Power (Watts) | 840 mW |
| RPM | 2100 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 0.1 in H2O |
| Static Pressure | 24.9 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Width [x] | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.65 | |
| 20 | $ 13.05 | |||
| 200 | $ 11.60 | |||
| 500 | $ 8.70 | |||
| 1000 | $ 8.05 | |||
| 5000 | $ 7.45 | |||
Description
General part information
YW08015012 Series
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 23.5 CFM (0.658m³/min) 2 Wire Leads
