1001-022-01300
ObsoleteCnC Tech, LLC

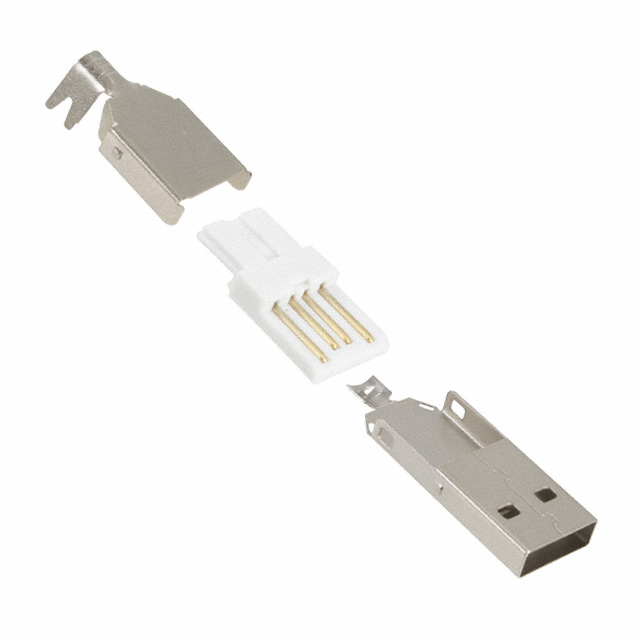

CONN PLUG USB1.1 TYPEA 4POS SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1001-022-01300
ObsoleteCnC Tech, LLC
CONN PLUG USB1.1 TYPEA 4POS SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001-022-01300 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Plug |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Steel |
| Specifications | USB 1.1 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.55 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.44 | |||
| 40 | $ 0.41 | |||
| 80 | $ 0.39 | |||
| 230 | $ 0.36 | |||
| 440 | $ 0.34 | |||
| 1800 | $ 0.27 | |||
Description
General part information
1001-022 Series
USB-A (USB TYPE-A) USB 1.1 Plug Connector 4 Position Free Hanging (In-Line)
