63604-511
ActiveLaird Thermal Systems, Inc.

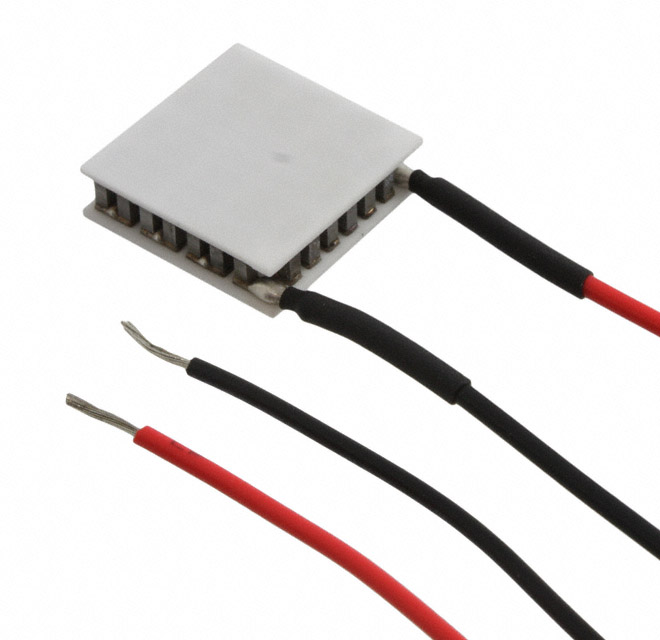

PELTIER MOD CP10,31,08,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
63604-511
ActiveLaird Thermal Systems, Inc.
PELTIER MOD CP10,31,08,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 63604-511 |
|---|---|
| Current - Max [Max] | 2.5 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.99 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 5.3 W |
| Resistance | 1.29 Ohms |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [y] | 15 mm |
| Voltage - Max [Max] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.34 | |
| 20 | $ 25.93 | |||
| 100 | $ 23.85 | |||
Description
General part information
63604 Series
Peltier Module 5.3W @ 25°C 2.5 A 80°C
