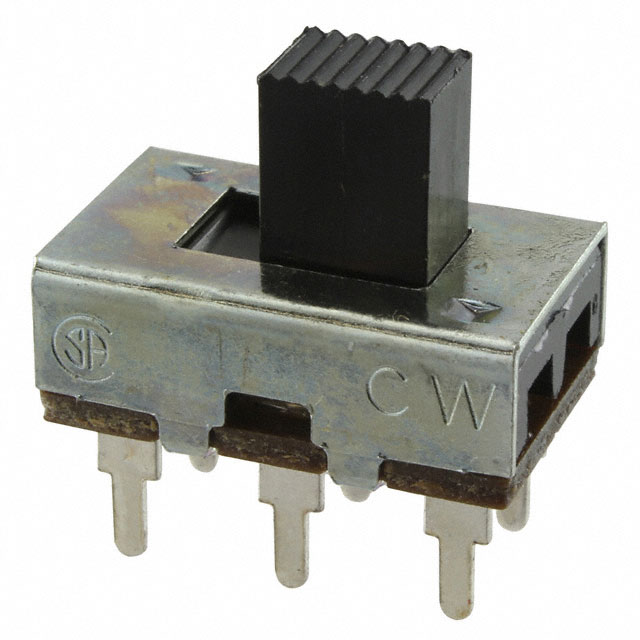

GF-426-0020
ActiveCW Industries
SWITCH SLIDE DPDT 4A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GF-426-0020
ActiveCW Industries
SWITCH SLIDE DPDT 4A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-426-0020 |
|---|---|
| Actuator Length [x] | 8.74 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 4 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On |
| Switch Travel [custom] | 3.89 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.47 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.30 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.04 | |||
Description
General part information
GF-426 Series
Slide Switch DPDT Through Hole
Documents
Technical documentation and resources
