0510211400

Active

Waldom

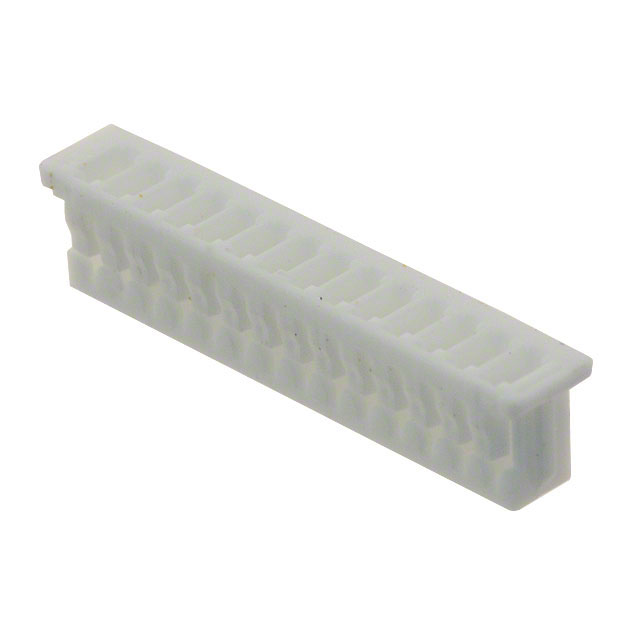

CONN RCPT HSG 14POS 1.25MM

Search across all available documentation for this part.

Active

Waldom

CONN RCPT HSG 14POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	0510211400

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polybutylene Terephthalate (PBTP)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Connector Type	Contact Termination	Note	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Color	Fastening Type
Waldom 0510211400	Receptacle	Crimp	Contacts Not Included	1	14	-40 °C	105 ░C	Free Hanging (In-Line)	Female Socket	0.049 in	1.25 mm	Polybutylene Terephthalate (PBTP)	Natural	Friction Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)
