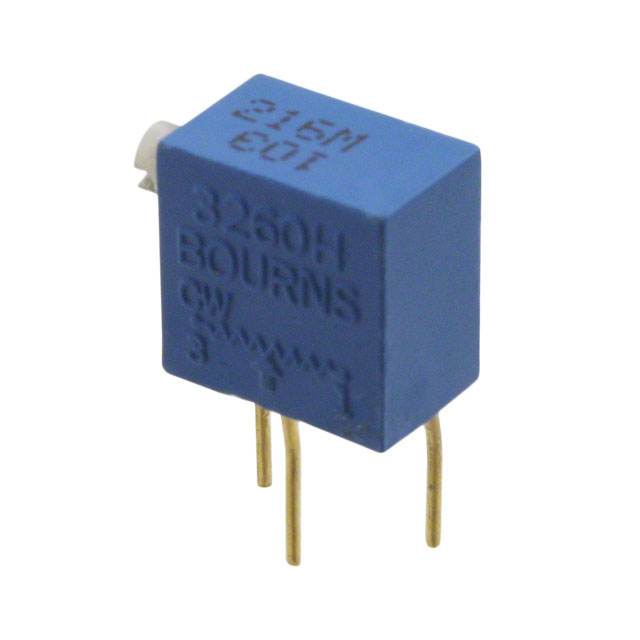

3260H-1-203

Active

Bourns Inc.

TRIMMER 20KOHM 0.25W PC PIN SIDE

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 20KOHM 0.25W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Resistance	Tolerance	Mounting Type	Adjustment Type	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Termination Style	Resistive Material
Bourns Inc. 3260H-1-500	70 ppm/°C	50 Ohms	5 %	Through Hole	Side Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	11	PC Pins	Wirewound
Bourns Inc. 3260H-1-101	70 ppm/°C	100 Ohms	5 %	Through Hole	Side Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	11	PC Pins	Wirewound
Bourns Inc. 3260H-1-201	70 ppm/°C	200 Ohms	5 %	Through Hole	Side Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	11	PC Pins	Wirewound
Bourns Inc. 3260H-1-202	70 ppm/°C	2 kOhms	5 %	Through Hole	Side Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	11	PC Pins	Wirewound
Bourns Inc. 3260H-1-103	70 ppm/°C	10000 Ohms	5 %	Through Hole	Side Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	11	PC Pins	Wirewound
Bourns Inc. 3260H-1-203	70 ppm/°C	20 kOhms	5 %	Through Hole	Side Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	11	PC Pins	Wirewound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Wirewound 11.0 Turn Side Adjustment
