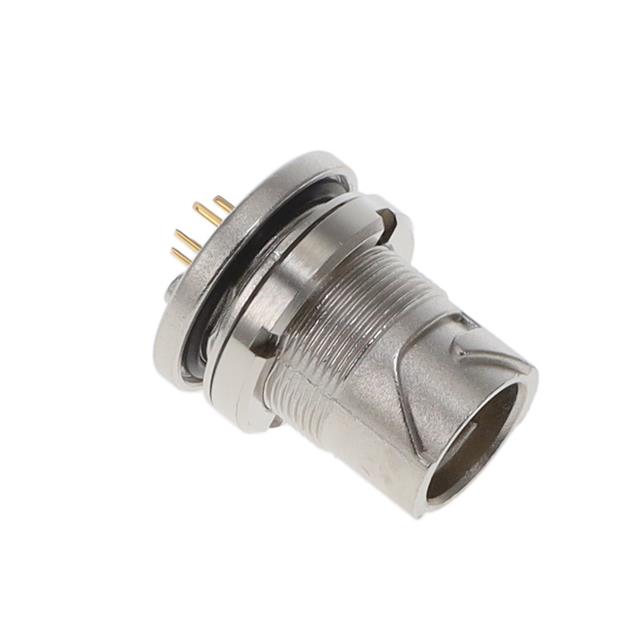

LF07WBRB-6PD-A(31)
ActiveHirose Electric USA, Inc.
CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
LF07WBRB-6PD-A(31)
ActiveHirose Electric USA, Inc.
CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LF07WBRB-6PD-A(31) |
|---|---|
| Applications | Telecommunications, Industrial |
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.2 Ám |
| Contact Finish Thickness - Mating | 7.87 Áin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell, Cable Clamp, Strain Relief |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 7 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 30 VAC, 42 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.24 | |
| 10 | $ 19.47 | |||
| 100 | $ 17.43 | |||
Description
General part information
LF07WBRB Series
6 Position Circular Connector Receptacle, Male Pins Solder
