6030133
ActiveSICK, Inc.

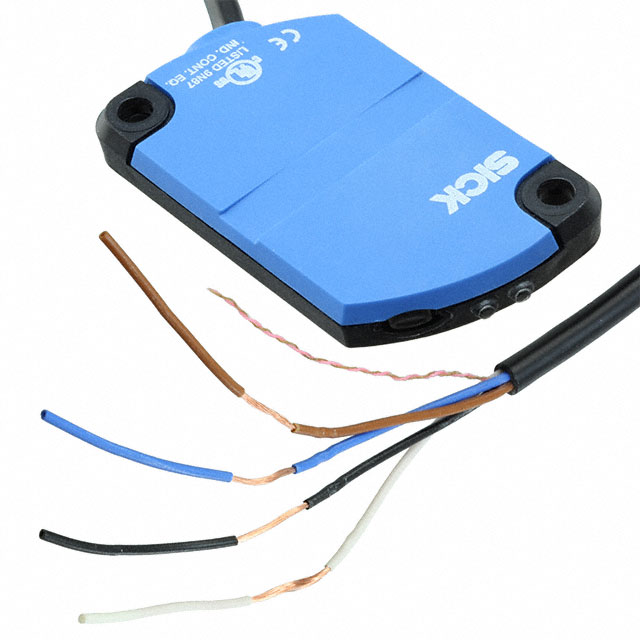

SENSOR PROX CAP 1MM-10MM FLANGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6030133
ActiveSICK, Inc.
SENSOR PROX CAP 1MM-10MM FLANGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6030133 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP68 |
| Material - Body | Plastic |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | NPN-NC/NO, 4-Wire |
| Package / Case | Flange Mount |
| Response Frequency | 10 Hz |
| Sensing Distance [Max] | 10 mm |
| Sensing Distance [Max] | 0.394 " |
| Sensing Distance [Min] | 0.039 in |
| Sensing Distance [Min] | 1 mm |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 155.67 | |
| 10 | $ 142.69 | |||
Description
General part information
CQ28-10 Series
SENSOR PROX CAP 1MM-10MM FLANGE
Documents
Technical documentation and resources
