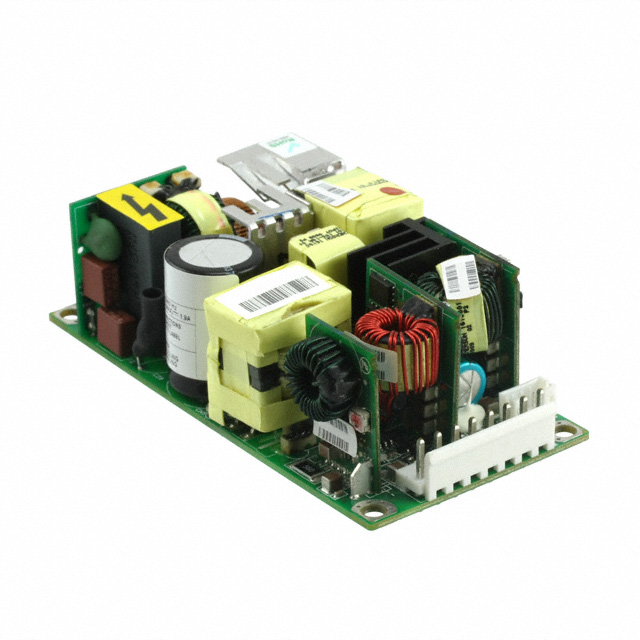

LPT101-M
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 3.3V 5V 12V 80W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPT101-M
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 3.3V 5V 12V 80W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPT101-M |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB |
| Current - Output 1 | 18 A |
| Current - Output 2 | 9 A |
| Current - Output 3 | 2.3 A |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 130 W, 80 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 102 mm |
| Size / Dimension [y] | 51 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 32.6 mm |
| Size / Dimension [z] | 1.28 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 80.68 | |
| 5 | $ 76.84 | |||
| 10 | $ 75.75 | |||
Description
General part information
LPT101 Series
Open Frame AC DC Converters 3 Output 3.3V 5V 12V 90 ~ 264 VAC Input
