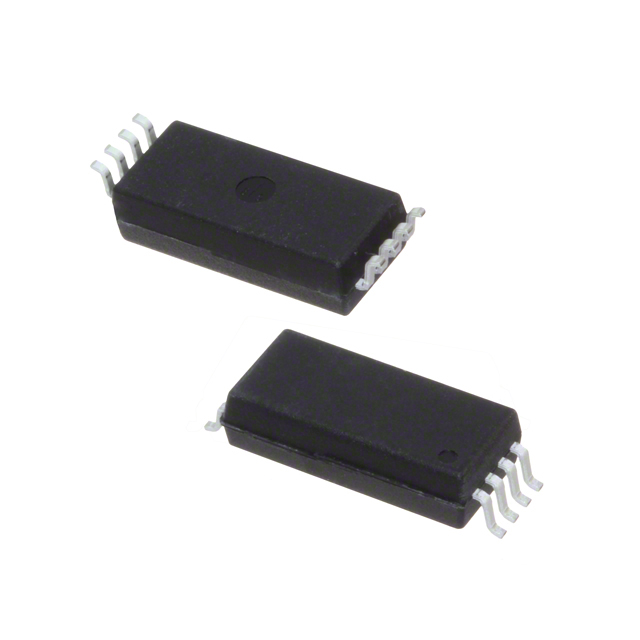

ACNT-H61L-000E

Active

Broadcom Limited

OPTOISO 7.5KV PUSH PULL 8SO

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOISO 7.5KV PUSH PULL 8SO

Technical Specifications

Parameters and characteristics for this part

Specification	ACNT-H61L-000E

Common Mode Transient Immunity (Min) [Min]	20 kV/µs
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output Type	Totem Pole, Push-Pull
Package / Case	8-SOIC
Package / Case	13.6 mm
Package / Case	0.535 in
Supplier Device Package	8-SO Stretched
Voltage - Isolation	7500 Vrms
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Channels	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Inputs - Side 1/Side 2 [custom]	Package / Case	Package / Case	Package / Case	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Isolation	Supplier Device Package	Mounting Type	Common Mode Transient Immunity (Min) [Min]	Current - Output / Channel [custom]	Voltage - Forward (Vf) (Typ)	Output Type
Broadcom Limited ACNT-H61LC-500E	-40 °C	105 ░C	10 mA	10 Mbps	2.7 V	5.5 V	1	DC	10 ns	10 ns	1	8-SOIC	13.6 mm	0.535 in	100 ns	100 ns	7500 Vrms	8-SO Stretched	Surface Mount	20 kV/µs	10 mA	1.38 V	Push-Pull Totem Pole
Broadcom Limited ACNT-H61L-500E	-40 °C	105 ░C		10 Mbps	2.7 V	5.5 V	1	DC			1	8-SOIC	13.6 mm	0.535 in			7500 Vrms	8-SO Stretched	Surface Mount	20 kV/µs			Push-Pull Totem Pole
Broadcom Limited ACNT-H61L-000E	-40 °C	105 ░C		10 Mbps	2.7 V	5.5 V	1	DC			1	8-SOIC	13.6 mm	0.535 in			7500 Vrms	8-SO Stretched	Surface Mount	20 kV/µs			Push-Pull Totem Pole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 10MBd Push-Pull, Totem Pole 7500Vrms 1 Channel 20kV/µs CMTI 8-SO Stretched
