UPS5819E3/TR7

Active

Microsemi Corporation

DIODE SCHOTTKY 40V 1A POWERMITE1

Search across all available documentation for this part.

Active

Microsemi Corporation

DIODE SCHOTTKY 40V 1A POWERMITE1

Technical Specifications

Parameters and characteristics for this part

Specification	UPS5819E3/TR7

Capacitance @ Vr, F	60 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-216AA
Speed	200 mA, 500 ns
Supplier Device Package	Powermite 1 (DO216-AA)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Package / Case	Mounting Type	Capacitance @ Vr, F	Speed	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Technology	Supplier Device Package
Microsemi Corporation UPS5819E3/TR7	DO-216AA	Surface Mount	60 pF	200 mA 500 ns	550 mV	40 V	1 mA	150 °C	-55 °C	1 A	Schottky	Powermite 1 (DO216-AA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

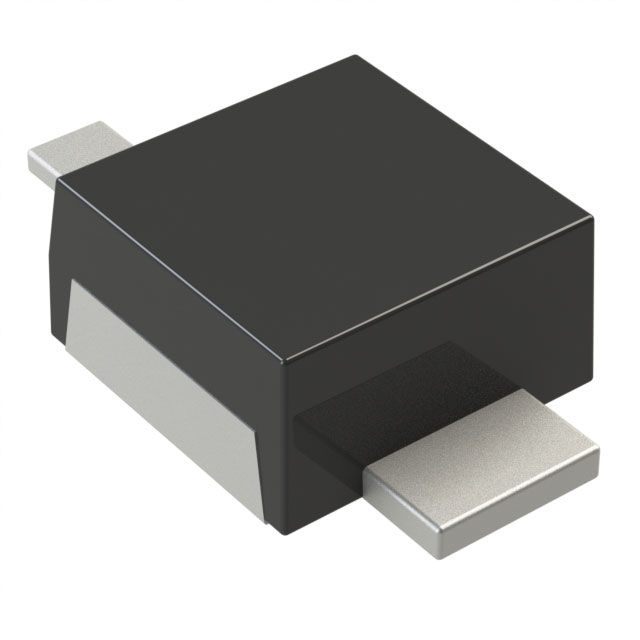

Diode 40 V 1A Surface Mount Powermite 1 (DO216-AA)

Technical documentation and resources

No documents available
