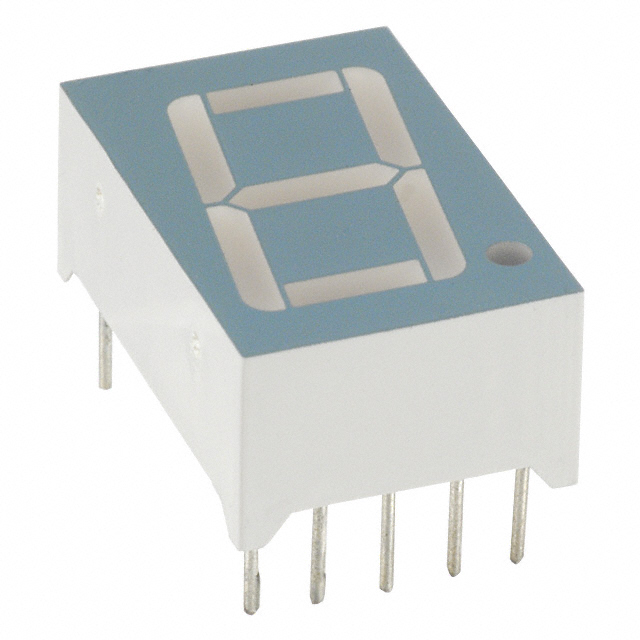

LDS-A516RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" SGL RED 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDS-A516RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" SGL RED 10DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-A516RI |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 12 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 100 mW |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [y] | 0.496 in |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.748 " |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.60 | |
| 40 | $ 1.07 | |||
| 120 | $ 0.82 | |||
| 520 | $ 0.82 | |||
Description
General part information
LDS-A516 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.8V 10mA 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Documents
Technical documentation and resources
No documents available
