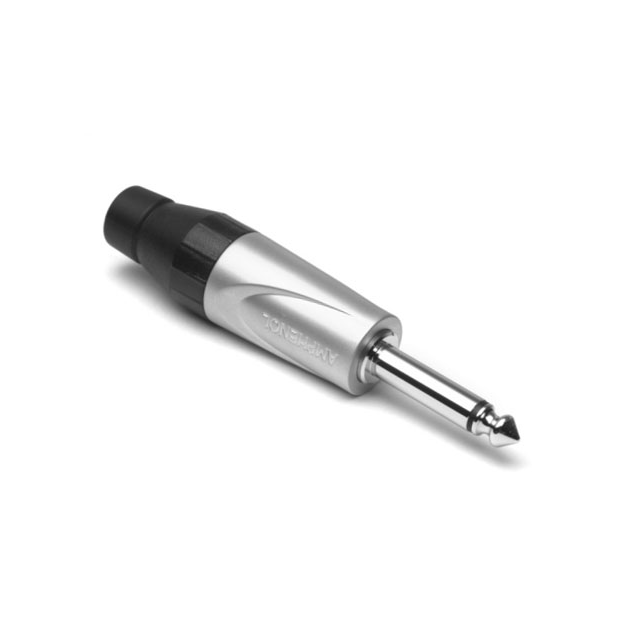

JM2P BULK

Active

Amphenol Sine Systems Corp

1/4" JUMBO PHONE STR MONO NI BUL

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

1/4" JUMBO PHONE STR MONO NI BUL

Technical Specifications

Parameters and characteristics for this part

Specification	JM2P BULK

Body Color	Silver
Cable Opening [custom]	7.49 mm
Cable Opening [custom]	0.413 in, 0.295 in
Cable Opening [custom]	10.49 mm
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Zinc Die Cast
Internal Switch(s)	False
Mating Length/Depth	1.2 in
Mating Length/Depth	30.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)

Part	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Signal Lines	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Body Color	Mounting Type	Internal Switch(s)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Gender	Housing Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material
Amphenol Sine Systems Corp JM2P BULK	Nickel	1.2 in	30.5 mm	Mono	7.49 mm	0.295 in 0.413 in	10.49 mm	Phone Plug	Silver	Free Hanging (In-Line)		2	2	Unshielded	Male	Zinc Die Cast	10 A	-25 °C	75 ░C	Solder Eyelet(s)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	300	$ 7.95

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
