255104-08-48.00

Active

Amphenol RF

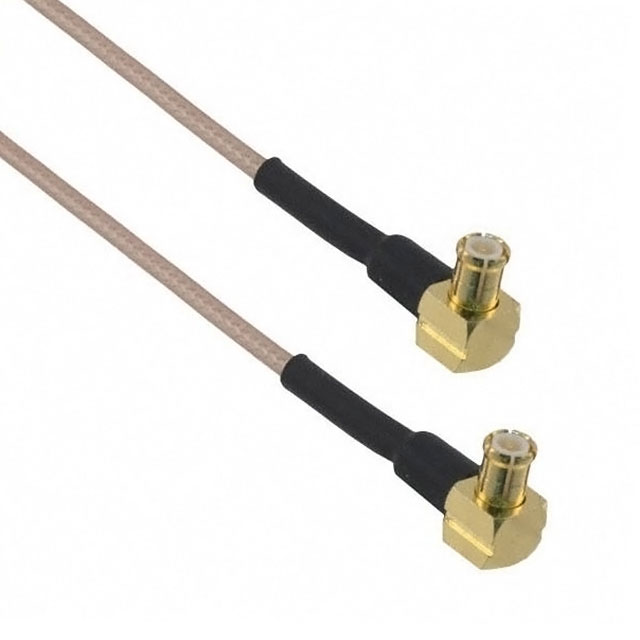

CBL ASSY MCX PLUG TO PLUG 4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMCX to MCX Assemblies

255104-08-48.00

Active

Amphenol RF

CBL ASSY MCX PLUG TO PLUG 4'

Deep-Dive with AI

DocumentsMCX to MCX Assemblies

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	255104-08-48.00

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Features	Shielded
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	MCX to MCX

255104 Series

Part	Cable Type	2nd Connector Mounting Type	1st Connector	Style	1st Contact Gender	2nd Connector	2nd Contact Gender	1st Connector Mounting Type	Color	Length	Length	Cable Impedance	Features	Overall Impedance	Length
Amphenol RF 255104-03-24.00	RG-316 DS	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	24 "	609.6 mm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-03-36.00	RG-316 DS	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	36 in	91.44 cm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-03-12.00	RG-316 DS	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	12 "	304.8 mm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-08-24.00	RG-178	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	24 "	609.6 mm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-01-24.00	RG-316	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	24 "	609.6 mm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-01-36.00	RG-316	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	36 in	91.44 cm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-08-36.00	RG-178	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	36 in	91.44 cm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-08-06.00	RG-178	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	6 in	152.4 mm	50 Ohms	Shielded	50 Ohms
Amphenol RF 255104-08-48.00	RG-178	Free Hanging (In-Line)	MCX Plug Right Angle	MCX to MCX	Male	MCX Plug Right Angle	Male	Free Hanging (In-Line)	Copper	48 in	1200 mm	50 Ohms	Shielded	50 Ohms	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

255104 Series

Cable Assembly Coaxial MCX to MCX RG-178 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

MCX to MCX Assemblies

Datasheet
