1032A 00610000 - MFG_1032A-00610000

1032A 00610000

Active
Belden Inc.

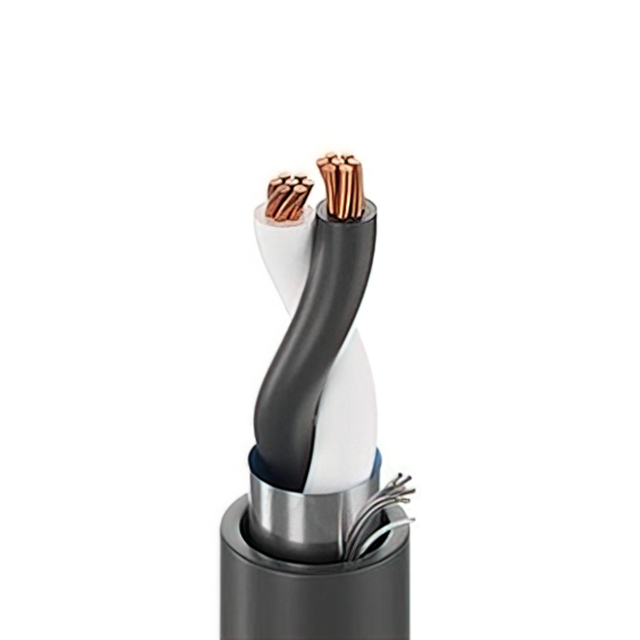

CABLE 2CON 18AWG BLU SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial ApplicationsDatasheet
1032A 00610000 - MFG_1032A-00610000

1032A 00610000

Active
Belden Inc.

CABLE 2CON 18AWG BLU SHLD

Deep-Dive with AI

DocumentsCabling Solutions for Industrial ApplicationsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification1032A 00610000
Cable TypeMulti-Conductor
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Bare
Conductor Strand [custom]26 AWG
Conductor Strand [custom]7
Jacket (Insulation) Diameter [diameter]6.02 mm
Jacket (Insulation) Diameter [diameter]0.237 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness0.94 mm
Jacket (Insulation) Thickness0.037 in
Jacket ColorBlue
Length3048 m
Length [x]10000 ft
Number of Conductors2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-30 ░C
Shield Coverage100 %
Shield MaterialAluminum
Shield TypeFoil
Wire Gauge18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 10000$ 0.88

Description

General part information

1032A Series

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Blue 18 AWG Foil 10000' (3048.0m)
