CX90M-16P
ActiveHirose Electric USA, Inc.

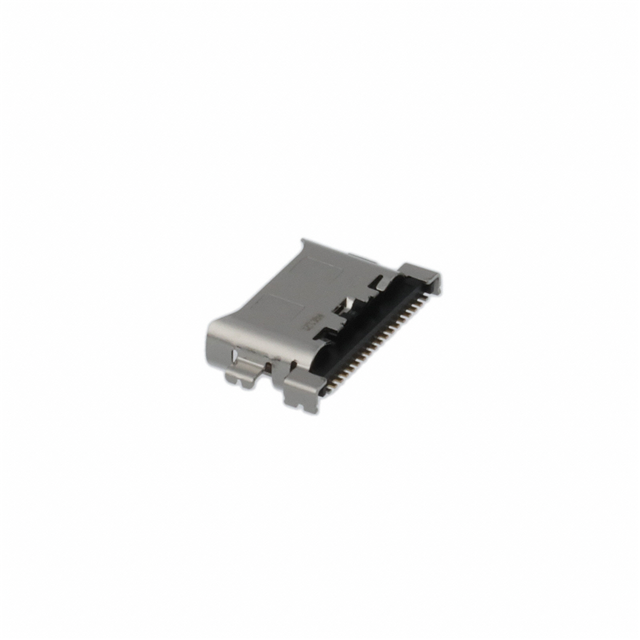

CONN RCP USB3.2 TYP C 24P BRD ED
Deep-Dive with AI
Search across all available documentation for this part.
CX90M-16P
ActiveHirose Electric USA, Inc.
CONN RCP USB3.2 TYP C 24P BRD ED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CX90M-16P |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.62 | |
| 10 | $ 2.28 | |||
| 25 | $ 2.18 | |||
| 50 | $ 2.13 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.84 | |||
| 500 | $ 1.70 | |||
| Digi-Reel® | 1 | $ 2.62 | ||
| 10 | $ 2.28 | |||
| 25 | $ 2.18 | |||
| 50 | $ 2.13 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.84 | |||
| 500 | $ 1.70 | |||
| Tape & Reel (TR) | 1600 | $ 1.41 | ||
| 3200 | $ 1.36 | |||
| 4800 | $ 1.29 | |||
Description
General part information
CX90M Series
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
