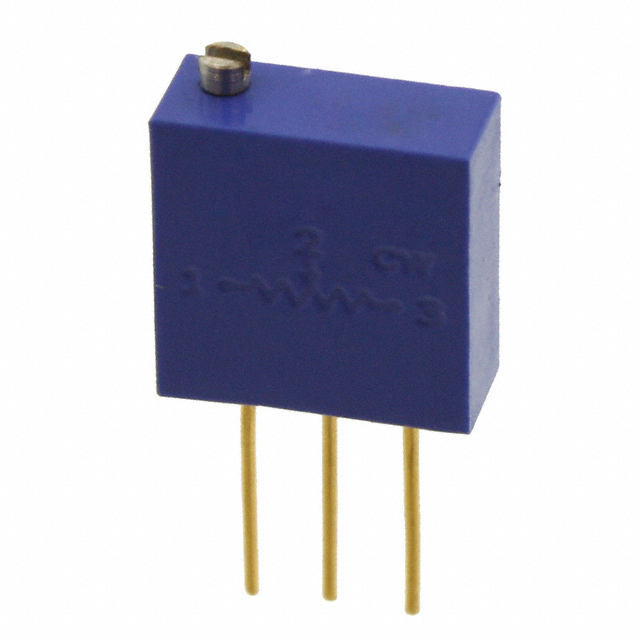

3290W-1-201M

Active

Bourns Inc.

TRIMMER 200 OHM 1W PC PIN TOP

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 200 OHM 1W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Temperature Coefficient	Power (Watts)	Termination Style	Number of Turns	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Adjustment Type	Resistive Material	Resistance	Tolerance
Bourns Inc. 3290W-1-100	Through Hole	50 ppm/°C	1 W	PC Pins	25	3.81 mm	0.15 in	9.53 mm	0.375 in	Top Adjustment	Wirewound	10 Ohms	5 %
Bourns Inc. 3290W-1-222	Through Hole	50 ppm/°C	1 W	PC Pins	25	3.81 mm	0.15 in	9.53 mm	0.375 in	Top Adjustment	Wirewound	2200 Ohms	5 %
Bourns Inc. 3290W-1-201	Through Hole	50 ppm/°C	1 W	PC Pins	25	3.81 mm	0.15 in	9.53 mm	0.375 in	Top Adjustment	Wirewound	200 Ohms	5 %
Bourns Inc. 3290W-1-103	Through Hole	50 ppm/°C	1 W	PC Pins	25	3.81 mm	0.15 in	9.53 mm	0.375 in	Top Adjustment	Wirewound	10000 Ohms	5 %
Bourns Inc. 3290W-1-203M	Panel Mount Through Hole	50 ppm/°C	1 W	PC Pins	25	3.81 mm	0.15 in	9.53 mm	0.375 in	Top Adjustment	Wirewound	20 kOhms	5 %
Bourns Inc. 3290W-1-502M	Panel Mount Through Hole	50 ppm/°C	1 W	PC Pins	25	3.81 mm	0.15 in	9.53 mm	0.375 in	Top Adjustment	Wirewound	5 kOhms	5 %
Bourns Inc. 3290W-1-201M	Panel Mount Through Hole	50 ppm/°C	1 W	PC Pins	25	3.81 mm	0.15 in	9.53 mm	0.375 in	Top Adjustment	Wirewound	200 Ohms	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 39.67

General part information

200 Ohms 1W PC Pins Panel Mount, Through Hole Trimmer Potentiometer Wirewound 25.0 Turn Top Adjustment
