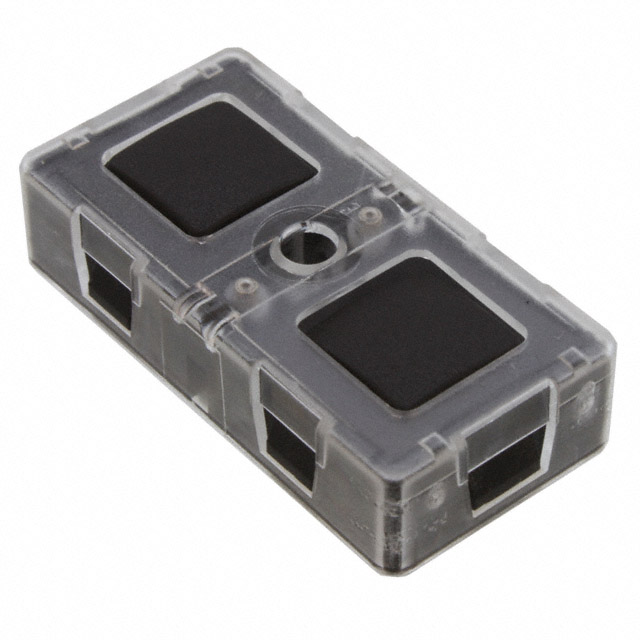

1.12.000.001/0000
ActiveRAFI USA
SWITCH PUSH DPST 4A 250V
Deep-Dive with AI
Search across all available documentation for this part.
1.12.000.001/0000
ActiveRAFI USA
SWITCH PUSH DPST 4A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.12.000.001/0000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 4 A |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP40 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Off, Off-On |
| Termination Style | PC Pin |
| Type | Keyswitch |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 12 | $ 14.36 | |
Description
General part information
1.12000 Series
Pushbutton Switch DPST-NO/NC Keyswitch Through Hole
Documents
Technical documentation and resources
No documents available
