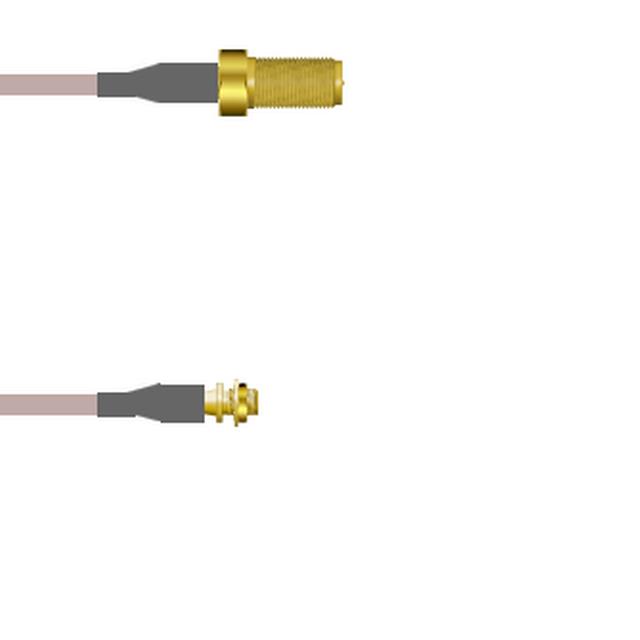

Q-7101I0005.75M

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO MMCX 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO MMCX 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-7101I0005.75M

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	RP-SMA to MMCX

Part	Cable Type	2nd Connector Mounting Feature	1st Connector	Connector Impedance	Length	Length	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	2nd Connector Mounting Type	Cable Impedance	2nd Contact Gender	Features	2nd Connector	Overall Impedance	Color	Style	Length [x]	Length [x]
Amphenol Custom Cable Q-7101I0005003I	RG-316	Bulkhead - Front Side Nut	RP-SMA Jack	50 Ohms	3 in	76.2 mm	Free Hanging (In-Line)	3 GHz	Male	Panel Mount	50 Ohms	Female	Shielded	MMCX Jack	50 Ohms	Copper	RP-SMA to MMCX
Amphenol Custom Cable Q-7101I0005018I	RG-316	Bulkhead - Front Side Nut	RP-SMA Jack	50 Ohms			Free Hanging (In-Line)	3 GHz	Male	Panel Mount	50 Ohms	Female	Shielded	MMCX Jack	50 Ohms	Copper	RP-SMA to MMCX	457.2 mm	457.2 mm
Amphenol Custom Cable Q-7101I0005.75M	RG-316	Bulkhead - Front Side Nut	RP-SMA Jack	50 Ohms	29.53 "	750 mm	Free Hanging (In-Line)	3 GHz	Male	Panel Mount	50 Ohms	Female	Shielded	MMCX Jack	50 Ohms	Copper	RP-SMA to MMCX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to MMCX RG-316 29.53" (750.00mm)
