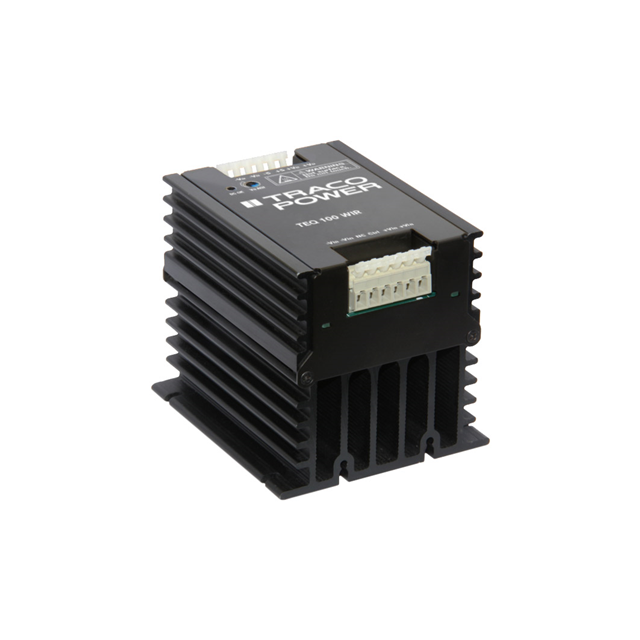

TEQ 100-2415WIR
ActiveTraco Power
DC/DC CONVERTER 24V 101W
Deep-Dive with AI
DocumentsTEQ 100WIR Certs
Technical Specifications
Parameters and characteristics for this part
| Specification | TEQ 100-2415WIR |
|---|---|
| Applications | Railway, Industrial, ITE (Commercial) |
| Approval Agency | CB, cURus, cULus |
| Current - Output (Max) [Max] | 4.2 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 101 W |
| Size / Dimension [x] | 103.1 mm |
| Size / Dimension [x] | 4.06 " |
| Size / Dimension [y] | 3.5 in |
| Size / Dimension [y] | 88.9 mm |
| Size / Dimension [z] | 3.45 " |
| Size / Dimension [z] | 87.6 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 401.10 | |
| 10 | $ 345.88 | |||
| 25 | $ 334.46 | |||
| 50 | $ 297.85 | |||
Description
General part information
TEQ 100 Series
Enclosed DC DC Converter 1 Output 24V 4.2A 36V Input
