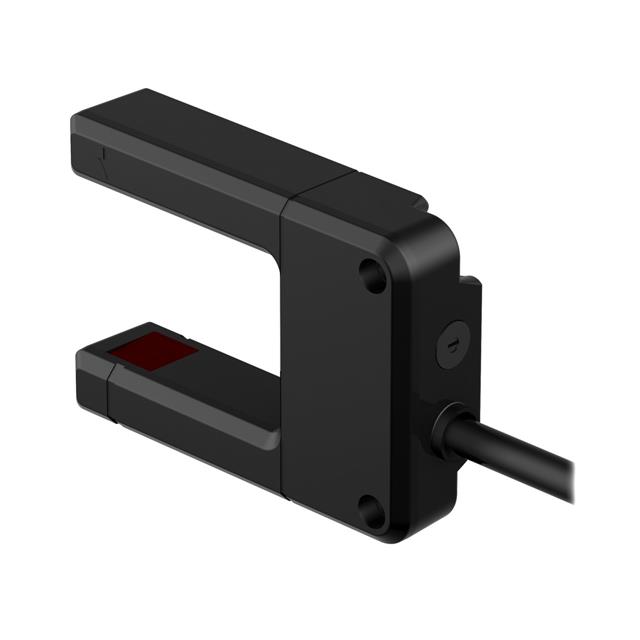

SL30VB6V W/30

Active

BANNER ENGINEERING

SLOT WIDTH: 30 MM; INPUT: 10-30V

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SLOT WIDTH: 30 MM; INPUT: 10-30V

Technical Specifications

Parameters and characteristics for this part

Specification	SL30VB6V W/30

Mounting Type	Chassis Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Package / Case	Slot Type, Module, Wire Leads
Response Time	1 ms
Sensing Distance	1.181 in
Sensing Distance	30 mm
Sensing Method	Through-Beam

Part	Sensing Distance	Sensing Distance	Response Time	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connection Method	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Light Source	Package / Case	Mounting Type
BANNER ENGINEERING SL30VB6VYQ	1.181 in	30 mm	0.3 ms	IP67 NEMA 6P	-40 °C	70 °C	Connector	Through-Beam	30 VDC	10 VDC	NPN/PNP - Dark-ON/Light-ON	Red
BANNER ENGINEERING SL30VB6V W/30	1.181 in	30 mm	1 ms		-40 °C	70 °C		Through-Beam			Dark-ON/Light-ON NPN/PNP Selectable		Module Slot Type Wire Leads	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 189.00

General part information

Optical Sensor Through-Beam 1.181" (30mm) NPN/PNP - Dark-ON/Light-ON - Selectable Module, Wire Leads, Slot Type
