M22-6340542

Active

Harwin Inc.

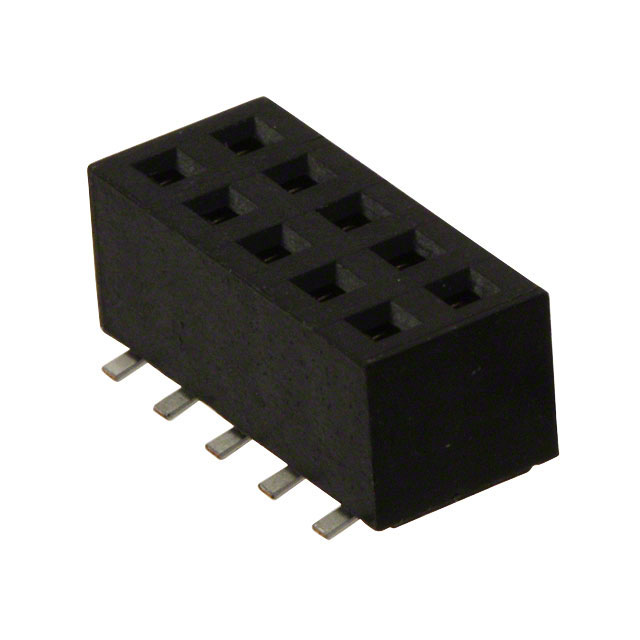

CONN RCPT 10POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM22 Series Spec Sheet Datasheet +1

M22-6340542

Active

Harwin Inc.

CONN RCPT 10POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsM22 Series Spec Sheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-6340542

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder
Voltage Rating	500 VAC

M22-634 Series

Part	Number of Positions	Contact Shape	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Applications	Number of Rows	Fastening Type	Insulation Material	Current Rating (Amps)	Termination	Insulation Height	Insulation Height	Connector Type	Mounting Type	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Material Flammability Rating	Contact Finish - Mating	Contact Material	Row Spacing - Mating	Row Spacing - Mating
Harwin Inc. M22-6340442	8	Square	Female Socket	0.079 in	2 mm	Tin	General Purpose Industrial Telecommunications	2	Push-Pull	Nylon 6T Polyamide (PA6T)	2 A	Solder	4.3 mm	0.169 "	Receptacle Bottom or Top Entry	Surface Mount	All	500 VAC	Flash	-40 °C	105 ░C	Black	UL94 V-0	Gold	Phosphor Bronze	0.079 in	2 mm
Harwin Inc. M22-6340642	12	Square	Female Socket	0.079 in	2 mm	Tin	General Purpose Industrial Telecommunications	2	Push-Pull	Nylon 6T Polyamide (PA6T)	2 A	Solder	4.3 mm	0.169 "	Receptacle Bottom or Top Entry	Surface Mount	All	500 VAC	Flash	-40 °C	105 ░C	Black	UL94 V-0	Gold	Phosphor Bronze	0.079 in	2 mm
Harwin Inc. M22-6340342	6	Square	Female Socket	0.079 in	2 mm	Tin	General Purpose Industrial Telecommunications	2	Push-Pull	Nylon 6T Polyamide (PA6T)	2 A	Solder	4.3 mm	0.169 "	Receptacle Bottom or Top Entry	Surface Mount	All	500 VAC	Flash	-40 °C	105 ░C	Black	UL94 V-0	Gold	Phosphor Bronze	0.079 in	2 mm
Harwin Inc. M22-6340342R	6	Square	Female Socket	0.079 in	2 mm	Tin	General Purpose Industrial Telecommunications	2	Push-Pull	Nylon 6T Polyamide (PA6T)	2 A	Solder	4.3 mm	0.169 "	Receptacle Bottom or Top Entry	Surface Mount	All	500 VAC	Flash	-40 °C	105 ░C	Black	UL94 V-0	Gold	Phosphor Bronze	0.079 in	2 mm
Harwin Inc. M22-6341042	20	Square	Female Socket	0.079 in	2 mm	Tin	General Purpose Industrial Telecommunications	2	Push-Pull	Nylon 6T Polyamide (PA6T)	2 A	Solder	4.3 mm	0.169 "	Receptacle Bottom or Top Entry	Surface Mount	All	500 VAC	Flash	-40 °C	105 ░C	Black	UL94 V-0	Gold	Phosphor Bronze	0.079 in	2 mm
Harwin Inc. M22-6340542R	10	Square	Female Socket	0.079 in	2 mm	Tin	General Purpose Industrial Telecommunications	2	Push-Pull	Nylon 6T Polyamide (PA6T)	2 A	Solder	4.3 mm	0.169 "	Receptacle Bottom or Top Entry	Surface Mount	All	500 VAC	Flash	-40 °C	105 ░C	Black	UL94 V-0	Gold	Phosphor Bronze	0.079 in	2 mm
Harwin Inc. M22-6340542	10	Square	Female Socket	0.079 in	2 mm	Tin	General Purpose Industrial Telecommunications	2	Push-Pull	Nylon 6T Polyamide (PA6T)	2 A	Solder	4.3 mm	0.169 "	Receptacle Bottom or Top Entry	Surface Mount	All	500 VAC	Flash	-40 °C	105 ░C	Black	UL94 V-0	Gold	Phosphor Bronze	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.64
		55	$ 1.34
		110	$ 1.28
		550	$ 1.07
		1045	$ 0.91
		5005	$ 0.81
		10010	$ 0.79

Description

General part information

M22-634 Series

10 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold

M22-6340542

Deep-Dive with AI

M22-6340542

Deep-Dive with AI

Technical Specifications

M22-634 Series

Pricing

Description

M22-634 Series

Documents

M22 Series Spec Sheet

Datasheet

M20-003

M22-634 Series
