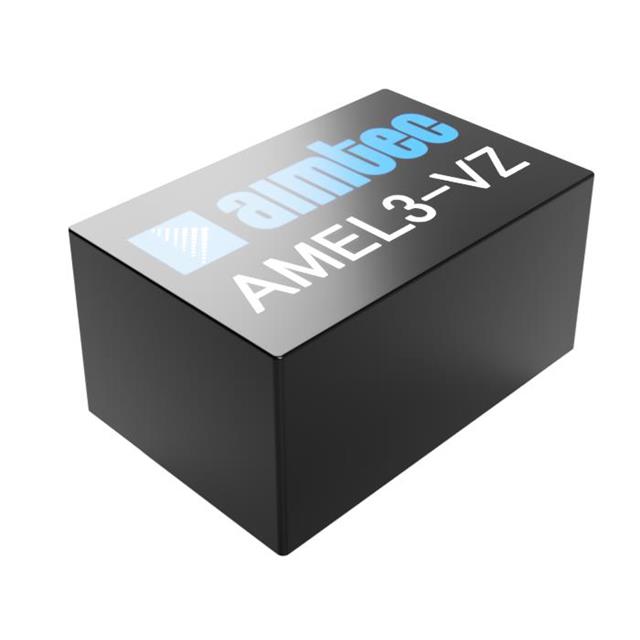

AMEL3-3.3SVZ

Active

aimtec

AC/DC CONVERTER 3.3V 2.3W

Search across all available documentation for this part.

Active

aimtec

AC/DC CONVERTER 3.3V 2.3W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Current - Output (Max) [Max]	Power (Watts)	Features	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Load Regulation	Line Regulation	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Output 1	Weight	Weight	Voltage - Isolation	Current - Output 1
aimtec AMEL3-12SVZ	ITE (Commercial)	250 mA	3 W	Universal Input	Through Hole	0.71 in	24.5 mm	1.46 in	18 mm	0.97 "	37 mm	1 %	0.5 %	264 VAC 370 VDC	85 VAC 100 V	1	77 %	Enclosed	-40 °C	70 °C	16-DIP Module 5 Leads	12 V
aimtec AMEL3-5SVZ	ITE (Commercial)	600 mA	3 W	Universal Input	Through Hole	0.71 in	24.5 mm	1.46 in	18 mm	0.96 in	37 mm	1 %	0.5 %	264 VAC 370 VDC	85 VAC 100 V	1	74 %	Enclosed			26-DIP Module 5 Leads	5 V	0.055 lb	25 g
aimtec AMEL3-12SVZ-W	ITE (Commercial)		3 W	Universal Input	Chassis Mount	0.71 in	24.9 mm	1.46 in	18 mm	0.97 "	37 mm			264 VAC 370 VDC	85 VAC 100 V	1	77 %	Enclosed	-40 °C	70 °C		12 V			4000 V	250 mA
aimtec AMEL3-3.3SVZ	ITE (Commercial)	700 mA	2.3 W	Universal Input	Through Hole	0.71 in	24.5 mm	1.46 in	18 mm	0.96 in	37 mm	1 %	0.5 %	264 VAC 370 VDC	85 VAC 100 V	1	66 %	Enclosed			26-DIP Module 5 Leads	3.3 V	0.055 lb	25 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 3.3V 700mA 85 ~ 264 VAC, 100 ~ 370 VDC Input
