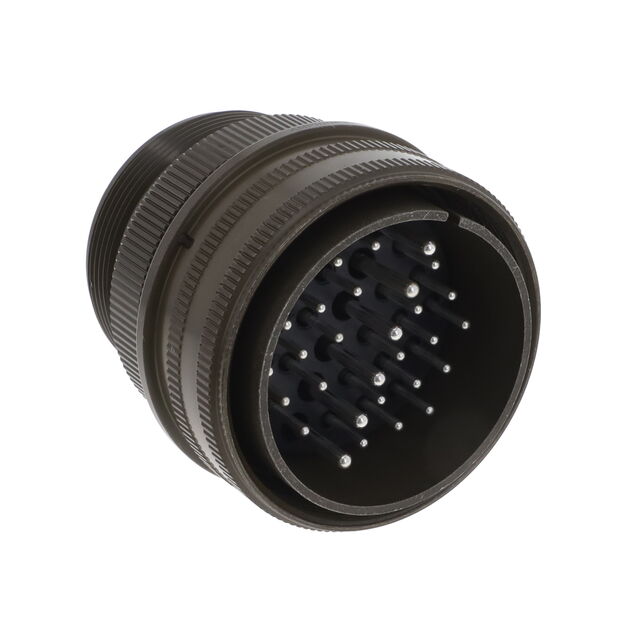

MS3106A32-8P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106A32-8P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A32-8P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 23 A
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	32-8
Shielding	Unshielded

MS3106A32 Series

Part	Shell Material	Contact Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Qualification	Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Features	Shell Finish	Number of Positions	Contact Finish - Mating	Mounting Type	Orientation	Insert Material	Connector Type	Applications	Shell Size - Insert	Current Rating (Amps)	Grade	Ingress Protection	Voltage Rating
Amphenol Industrial Operations MS3106A32-22PW	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded	MIL-DTL-5015	Olive Drab	32	22	Backshell Coupling Nut	Olive Drab Chromate over Cadmium	54	Silver	Free Hanging (In-Line)	W	Neoprene	Male Pins Plug	Marine Military
Amphenol Industrial Operations MS3106A32-8S	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded	MIL-DTL-5015	Olive Drab			Backshell Coupling Nut	Olive Drab Chromate over Cadmium	30	Silver	Free Hanging (In-Line)	N	Neoprene	Female Sockets Plug	Marine Military	32-8	13 A 23 A	Military	Environment Resistant
Amphenol Industrial Operations MS3106A32-6P	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded	MIL-DTL-5015	Olive Drab			Backshell Coupling Nut	Olive Drab Chromate over Cadmium	23	Silver	Free Hanging (In-Line)	N	Neoprene	Male Pins Plug	Marine Military	32-6	13 A 23 A 46 A 80 A	Military	Environment Resistant
Amphenol Industrial Operations MS3106A32-5S	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded	MIL-DTL-5015	Olive Drab			Backshell Coupling Nut	Olive Drab Chromate over Cadmium	2	Silver	Free Hanging (In-Line)	N	Neoprene	Female Sockets Plug	Marine Military	32-5	150 A	Military	Environment Resistant	900 VAC 1250 VDC
Amphenol Industrial Operations MS3106A32-17SY	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded	MIL-DTL-5015	Olive Drab			Backshell Coupling Nut	Olive Drab Chromate over Cadmium	4	Silver	Free Hanging (In-Line)	Y	Neoprene	Female Sockets Plug	Marine Military	32-17
Amphenol Industrial Operations MS3106A32-5S-RES
Amphenol Industrial Operations MS3106A32-13P	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded	MIL-DTL-5015	Olive Drab	13	32	Backshell Coupling Nut	Olive Drab Chromate over Cadmium	23	Silver	Free Hanging (In-Line)	N	Neoprene	Male Pins Plug	Marine Military		13 A 23 A	Military	Environment Resistant	900 VAC 1250 VDC
Amphenol Industrial Operations MS3106A32-22S	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded		Olive Drab	32	22	Backshell Coupling Nut	Olive Drab Chromate over Cadmium	54	Silver	Free Hanging (In-Line)	N	Neoprene	Female Sockets Plug	Marine Military		13 A			500 VAC 700 VDC
Amphenol Industrial Operations MS3106A32-8P	Aluminum Alloy	Copper Alloy	Metal	-55 °C	125 °C	Unshielded	MIL-DTL-5015	Olive Drab			Backshell Coupling Nut	Olive Drab Chromate over Cadmium	30	Silver	Free Hanging (In-Line)	N	Neoprene	Male Pins Plug	Marine Military	32-8	13 A 23 A	Military	Environment Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.37
		10	$ 70.08
		25	$ 67.39
		50	$ 65.14
		100	$ 61.55

Description

General part information

MS3106A32 Series

30 Position Circular Connector Plug, Male Pins Solder Cup
