MC-187-342-YL

Obsolete

BRADY

SLEEVE 20 AWG TO 10 AWG

Search across all available documentation for this part.

Obsolete

BRADY

SLEEVE 20 AWG TO 10 AWG

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [x]	Label Size [Min]	Label Size [diameter]	Label Size [Min]	Label Size [diameter]	Label Size [Max]	Label Size [x]	Label Size [Max]	Color	Material	Label Type	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]
BRADY MC-187-7641	-30 ░C	105 ░C	4.8 mm	0.09 "	0.07 in	2.4 mm	1.7 mm	3.8 mm	0.19 in	0.15 in	White	Polyolefin (PO)	Heat Shrinkable
BRADY MC-187-342				0.06 in		1.6 mm		3.8 mm		0.15 in	Black White	Polyolefin (PO)	Heat Shrinkable	4.8 mm	2.1 mm	0.08 "	0.19 "
BRADY MC-187-342-YL				0.06 in		1.6 mm		3.8 mm		0.15 in		Polyolefin (PO)	Heat Shrinkable	4.8 mm	2.1 mm	0.08 "	0.19 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 101.45

General part information

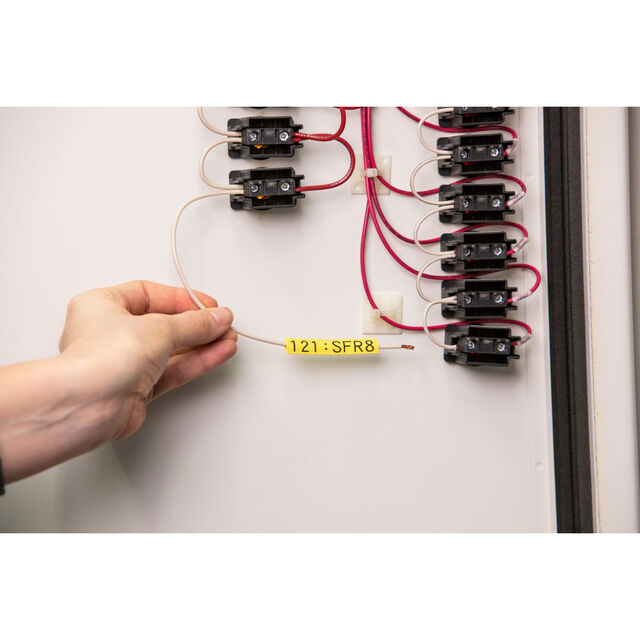

Black, Yellow Heat Shrinkable Label 0.19" W x 0.08" L (4.8mm x 2.1mm); Cable O.D. 0.06" ~ 0.15" (1.6mm ~ 3.8mm)

Technical documentation and resources

No documents available
