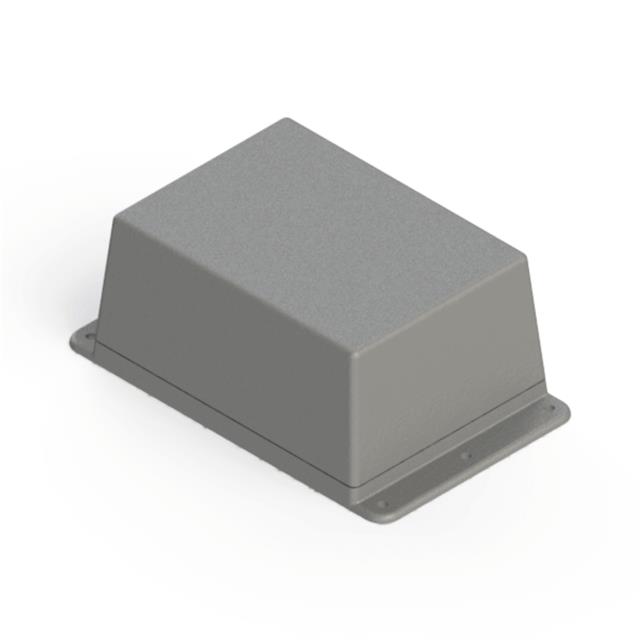

WM033,GY

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

WM033,GY

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM033,GY

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	2.1 in
Height [z]	53.34 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.231 lb
Weight	104.78 g

WM033 Series

Part	Height [z]	Height [z]	Weight	Weight	Color	Material	Design	Area (L x W)	Area (L x W)	Ratings	Features	Material Flammability Rating	Thickness	Thickness	Container Type
Serpac WM033I,BK	2.1 in	53.34 mm	0.231 lb	104.78 g	Black	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033R,GY	2.1 in	53.34 mm	0.231 lb	104.78 g	Gray	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033RI,BK	2.1 in	53.34 mm	0.231 lb	104.78 g	Black	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033RI,GY	2.1 in	53.34 mm	0.231 lb	104.78 g	Gray	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033I,AL	2.1 in	53.34 mm	0.231 lb	104.78 g	Almond	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033R,BK	2.1 in	53.34 mm	0.231 lb	104.78 g	Black	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033R,AL	2.1 in	53.34 mm	0.231 lb	104.78 g	Almond	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033I,GY	2.1 in	53.34 mm	0.231 lb	104.78 g	Gray	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033,BK	2.1 in	53.34 mm	0.231 lb	104.78 g	Black	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box
Serpac WM033,GY	2.1 in	53.34 mm	0.231 lb	104.78 g	Gray	Plastic ABS	Cover Included	14.2 in²	92 cm˛	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.98

Description

General part information

WM033 Series

Box Plastic, ABS Gray Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
