MS3102R24-12P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

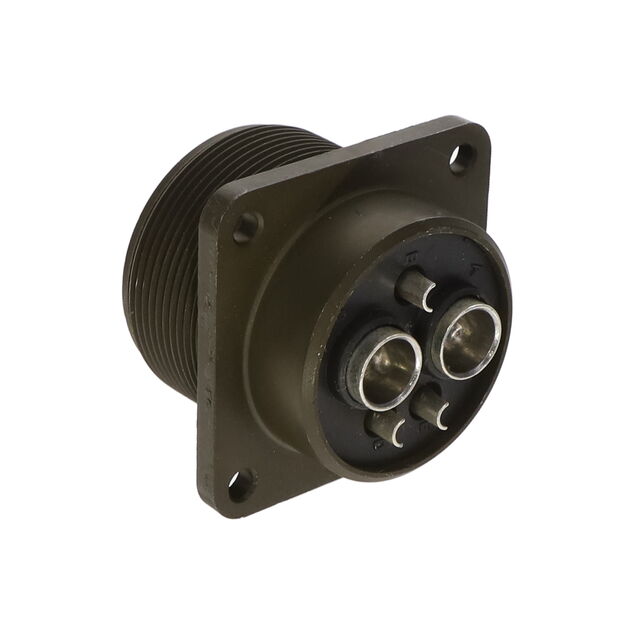

MS3102R24-12P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102R24-12P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A, 80 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	24-12
Shielding	Unshielded

MS3102R24 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Contact Finish - Mating	Number of Positions	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Qualification	Grade	Applications	Ingress Protection	Shielding	Insert Material	Contact Material	Primary Material	Shell Material	Color	Connector Type	Mounting Feature	Current Rating (Amps)	Voltage Rating	Number of Positions
Amphenol Industrial Operations MS3102R24-22S	-55 °C	125 °C	N	24-22	Silver	4	Olive Drab Chromate over Cadmium	34.93 mm	1.375 in	MIL-DTL-5015	Military	Marine Military	Environment Resistant	Unshielded	Neoprene	Copper Alloy	Metal	Aluminum Alloy	Olive Drab	Receptacle Female Sockets	Flange
Amphenol Industrial Operations MS3102R24-21P	-55 °C	125 °C	N	24-21	Silver	10	Olive Drab Chromate over Cadmium			MIL-DTL-5015	Military	Marine Military	Environment Resistant	Unshielded	Neoprene	Copper Alloy	Metal	Aluminum Alloy	Olive Drab	Male Pins Receptacle	Flange	13 A 46 A	900 VAC 1250 VDC
Amphenol Industrial Operations MS3102R24-5S	-55 °C	125 °C	N	24-5	Silver		Olive Drab Chromate over Cadmium			MIL-DTL-5015	Military	Marine Military	Environment Resistant	Unshielded	Neoprene	Copper Alloy	Metal	Aluminum Alloy	Olive Drab	Receptacle Female Sockets	Flange	13 A		16
Amphenol Industrial Operations MS3102R24-9S	-55 °C	125 °C	N	24-9	Silver	2	Olive Drab Chromate over Cadmium	34.93 mm	1.375 in	MIL-DTL-5015	Military	Marine Military	Environment Resistant	Unshielded	Neoprene	Copper Alloy	Metal	Aluminum Alloy	Olive Drab	Receptacle Female Sockets	Flange
Amphenol Industrial Operations MS3102R24-7P	-55 °C	125 °C	N	24-7	Silver		Olive Drab Chromate over Cadmium			MIL-DTL-5015	Military	Marine Military	Environment Resistant	Unshielded	Neoprene	Copper Alloy	Metal	Aluminum Alloy	Olive Drab	Male Pins Receptacle	Flange	13 A 23 A		16
Amphenol Industrial Operations MS3102R24-3S
Amphenol Industrial Operations MS3102R24-5P	-55 °C	125 °C	N	24-5	Silver		Olive Drab Chromate over Cadmium	34.93 mm	1.375 in	MIL-DTL-5015	Military	Marine Military	Environment Resistant	Unshielded	Neoprene	Copper Alloy	Metal	Aluminum Alloy	Olive Drab	Male Pins Receptacle	Flange			16
Amphenol Industrial Operations MS3102R24-67SW
Amphenol Industrial Operations MS3102R24-12P	-55 °C	125 °C	N	24-12	Silver		Olive Drab Chromate over Cadmium			MIL-DTL-5015	Military	Marine Military	Environment Resistant	Unshielded	Neoprene	Copper Alloy	Metal	Aluminum Alloy	Olive Drab	Male Pins Receptacle	Flange	23 A 80 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 55.00
		10	$ 50.47
		25	$ 48.53
		50	$ 46.91
		100	$ 44.32

Description

General part information

MS3102R24 Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup
