ODB250110-24HB10A

Active

Orion Fans

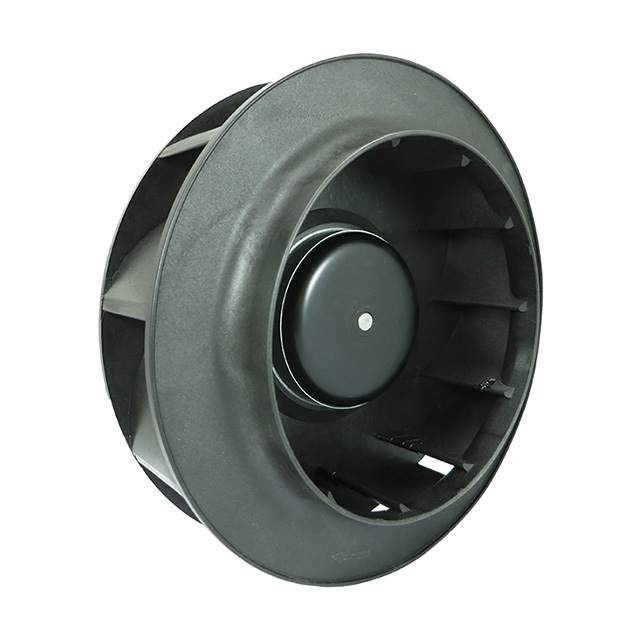

FAN IMP MTRZD 250X106.5MM 24VDC

Search across all available documentation for this part.

Active

Orion Fans

FAN IMP MTRZD 250X106.5MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	ODB250110-24HB10A

Air Flow	790 CFM
Air Flow	22.12 m³/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Current Rating (Amps)	5.4 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Thermoplastic
Material - Frame	Aluminum
Noise	78 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	130 W
RPM	2600 RPM
Size / Dimension [diameter]	250 mm
Static Pressure	553 Pa
Static Pressure	2.22 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Weight	5.1 lbs
Weight	2.3 kg
Width [y]	106.5 mm

Part	Material - Frame	Fan Type	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Noise	Width [y]	Termination	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Power (Watts)	Voltage - Rated [custom]	Lifetime @ Temp.	Material - Blade	Size / Dimension [diameter]	Static Pressure	Static Pressure	Approval Agency	Bearing Type	Features	Weight	Weight	Voltage - Rated
Orion Fans ODB250110-48HB10A	Aluminum	Motorized Impellers	2600 RPM	65 °C	65 °C	-10 °C	-10 °C	790 CFM	22.12 m³/min	78 dB(A)	106.5 mm	4 Wire Leads	36 VDC	56 VDC	2.7 A	130 W	48 VDC	40000 Hrs	Thermoplastic	250 mm	553 Pa	2.22 in H2O	CE cURus TUV UR	Ball	PWM Control Speed Sensor (Tach)	5.1 lbs	2.3 kg
Orion Fans ODB250110-24HB10A	Aluminum	Motorized Impellers	2600 RPM	65 °C	65 °C	-10 °C	-10 °C	790 CFM	22.12 m³/min	78 dB(A)	106.5 mm	4 Wire Leads	16 VDC	28 VDC	5.4 A	130 W		40000 Hrs	Thermoplastic	250 mm	553 Pa	2.22 in H2O	CE cURus TUV UR	Ball	PWM Control Speed Sensor (Tach)	5.1 lbs	2.3 kg	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 185.56

General part information

Fan Motorized Impellers 24VDC Round - 250mm Dia Ball 790.0 CFM (22.12mł/min) 4 Wire Leads
