SJ-42525TS-SMT-1

Obsolete

CUI Devices

CONN JACK 4COND 2.5MM SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJ-42525TS-SMT-1

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy, Phosphor Bronze
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	300 mA
Features	Board Guide
Gender	Female
Housing Material	Liquid Crystal Polymer (LCP)
Includes	1 Nut, 1 Connector
Industry Recognized Mating Diameter	0.094 in
Industry Recognized Mating Diameter	2.5 mm
Industry Recognized Mating Diameter	3 /32"
Internal Switch(s)	Single Switch
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts [custom]	5
Number of Positions/Contacts [custom]	4
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	16 V

SJ-42 Series

Part	Shielding	Features	Contact Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material - Plating	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Connector Type	Body Color	Signal Lines	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Gender	Termination	Mounting Type	Voltage - Rated	Housing Material	Contact Material - Plating [custom]	Includes	Internal Switch(s)
CUI Devices SJ-42524-SMT-1	Unshielded	Board Guide	Copper Alloy	2.6 mm	0.102 in	85 °C	-40 °C	300 mA	Gold Silver	0.094 in	2.5 mm	3 /32"	Phone Jack	Black	Stereo	4	4	Female	Solder	Surface Mount Right Angle	16 V	Liquid Crystal Polymer (LCP)
CUI Devices SJ-42514-SMT	Unshielded	Board Guide	Brass Copper Alloy	2.6 mm	0.102 in	85 °C	-20 C	300 mA		0.094 in	2.5 mm	3 /32"	Phone Jack	Black	Stereo	4	4	Female	Solder	Surface Mount Right Angle	16 V	Polyamide (PA6T) Nylon 6T	Gold
CUI Devices SJ-42524-SMT	Unshielded	Board Guide	Brass Copper Alloy Phosphor Bronze	2.6 mm	0.102 in	85 °C	-40 °C	300 mA	Gold Silver	0.094 in	2.5 mm	3 /32"	Phone Jack	Black	Stereo	4	4	Female	Solder	Surface Mount Right Angle	16 V	Polybutylene Terephthalate (PBT)
CUI Devices SJ-42534-SMT	Unshielded	Board Guide	Brass Copper Alloy	2.6 mm	0.102 in	85 °C	-20 C	300 mA		0.094 in	2.5 mm	3 /32"	Phone Jack	Black	Stereo	4	4	Female	Solder	Surface Mount Right Angle	16 V	Polyamide (PA6T) Nylon 6T	Silver
CUI Devices SJ-42525TS-SMT-1	Unshielded	Board Guide	Copper Alloy Phosphor Bronze	2.6 mm	0.102 in			300 mA		0.094 in	2.5 mm	3 /32"	Phone Jack	Black	Stereo	4	5	Female	Solder	Surface Mount Right Angle	16 V	Liquid Crystal Polymer (LCP)	Silver	1 Connector 1 Nut	Single Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SJ-42 Series

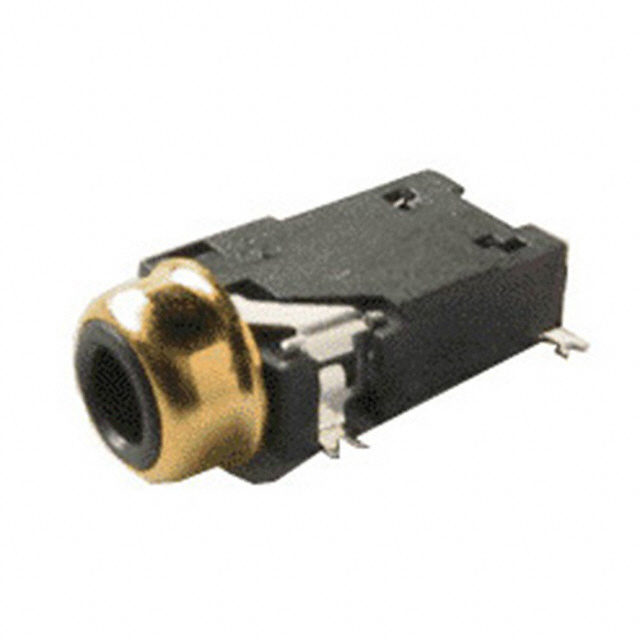

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
