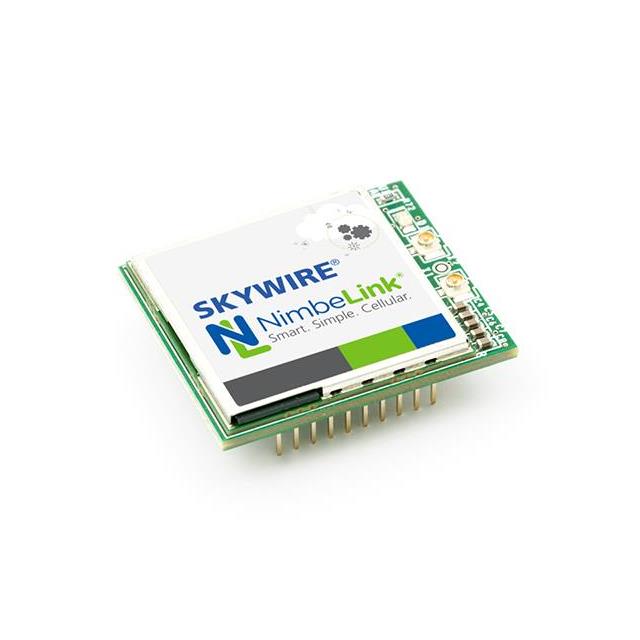

NL-SW-LTE-TC4EU

Obsolete

NimbeLink, LLC

RF TXRX MOD CELL U.FL TH

Search across all available documentation for this part.

Obsolete

NimbeLink, LLC

RF TXRX MOD CELL U.FL TH

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Protocol	Serial Interfaces	Package / Case	Antenna Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Transmitting	Current - Receiving	Mounting Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Sensitivity	Power - Output
NimbeLink, LLC NL-SW-LTE-GELS3-E	Cellular	4G LTE CAT-1 (Verizon)	UART USB	20-DIP Module	Antenna Not Included U.FL	-30 ░C	85 °C	1.5 A	1.5 A	Through Hole	1.7 GHz 700 MHz	5.5 V	3 V
NimbeLink, LLC NL-SW-LTE-S7588-V-B	Cellular	3G Fallback 4G LTE CAT-4 (Verizon)	UART USB	20-DIP Module	Antenna Not Included U.FL	-40 °C	85 °C			Through Hole	1.7 GHz 700 MHz 850 MHz 1900 MHz	5.5 V	3 V	150 Mbps
NimbeLink, LLC NL-SW-LTE-TC4APG	Cellular Navigation	Beidou Galileo GLONASS GPS HSPA+ LTE	UART USB	20-DIP Module	Antenna Not Included U.FL	-40 °C	85 °C			Through Hole		4.2 V	3.4 V	150 Mbps
NimbeLink, LLC NL-SW-LTE-QBG95	Cellular	4G LTE CAT NB-IoT	USB	Module	Antenna Not Included U.FL	-40 °C	85 °C			Through Hole	850 MHz 900 MHz 1800 MHz 1900 MHz	4.8 V	3.4 V	375 kbps	-115 dBm	20 dBm
NimbeLink, LLC NL-SW-LTE-TC4EU	Cellular	4G LTE CAT-4 (Europe) 3G/2G Fallback	UART USB	20-DIP Module	Antenna Not Included U.FL	-40 °C	85 °C			Through Hole		4.3 V	3.5 V	150 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular 4G LTE CAT-4 (Europe) 3G/2G Fallback Transceiver Module 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz Antenna Not Included, U.FL Through Hole

Technical documentation and resources
