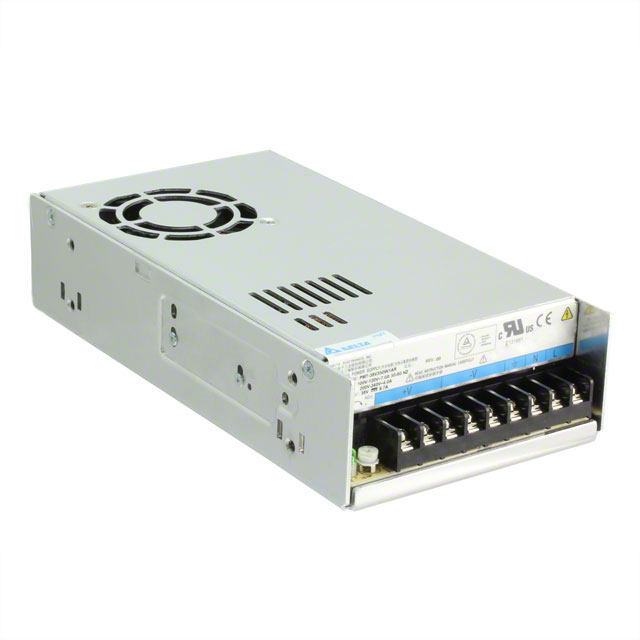

PMT-36V350W1AR
ActiveDelta Electronics
AC/DC CONVERTER 36V 350W
Deep-Dive with AI
Search across all available documentation for this part.
PMT-36V350W1AR
ActiveDelta Electronics
AC/DC CONVERTER 36V 350W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMT-36V350W1AR |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 9.7 A |
| Efficiency | 87.5 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 350 W |
| Size / Dimension [x] | 8.46 " |
| Size / Dimension [x] | 215 mm |
| Size / Dimension [y] | 115 mm |
| Size / Dimension [y] | 4.53 " |
| Size / Dimension [z] | 50 mm |
| Size / Dimension [z] | 1.97 " |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 180 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24 | $ 74.75 | |
Description
General part information
PMT-36 Series
Enclosed AC DC Converters 1 Output 36V 90 ~ 132 VAC, 180 ~ 264 VAC Input
