T92HP7A2X-120

Active

TE Connectivity Potter & Brumfield Relays

POWER RELAYS, STANDARD, MONOSTAB

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

POWER RELAYS, STANDARD, MONOSTAB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Coil Current	Contact Material	Coil Voltage	Release Time	Coil Insulation	Must Operate Voltage	Relay Type	Must Release Voltage	Switching Voltage	Contact Form	Coil Resistance	Mounting Type	Load - Max Switching [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Type	Load - Max Switching	Termination Style
TE Connectivity Potter & Brumfield Relays T92HP7D1X-24	50 A	68.6 mA	Silver Cadmium Oxide (AgCdO)	24 VDC	25 ms	Class F	18 VDC	General Purpose	2.4 VDC	600 VAC	DPST-NO (2 Form A)	350 Ohms	Through Hole	30000 VA	85 °C	-55 °C	25 ms	Non Latching
TE Connectivity Potter & Brumfield Relays T92HP7D1X-12	50 A	139.5 mA	Silver Cadmium Oxide (AgCdO)	12 VDC	25 ms	Class F	9 VDC	General Purpose	1.2 VDC	600 VAC	DPST-NO (2 Form A)	86 Ohms	Through Hole	30000 VA	85 °C	-55 °C	25 ms	Non Latching
TE Connectivity Potter & Brumfield Relays T92HP7A2X-120	45 A	130 mA	Cadmium Free Silver Alloy	120 VAC	25 ms	Class F	96 VAC	General Purpose	12 VAC	600 VAC	DPST-NO (2 Form A)	950 Ohms	Chassis Mount		85 °C	-55 °C	25 ms	Non Latching	27000 VA	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

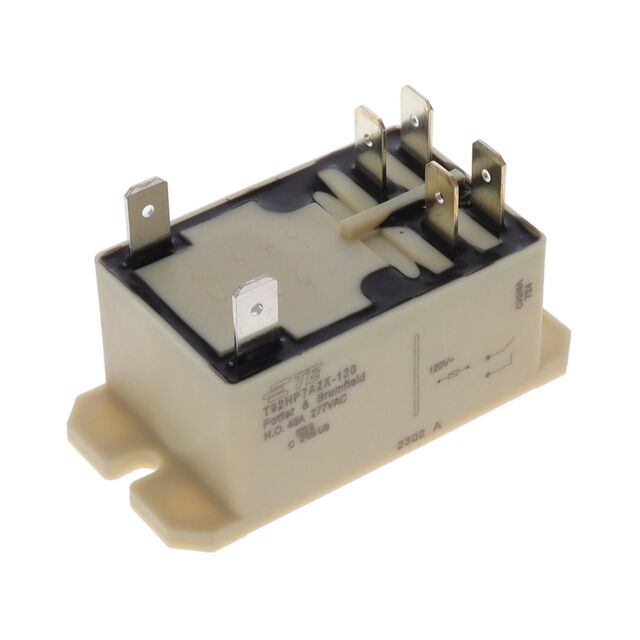

General Purpose Relay DPST-NO (2 Form A) 120VAC Coil Chassis Mount
