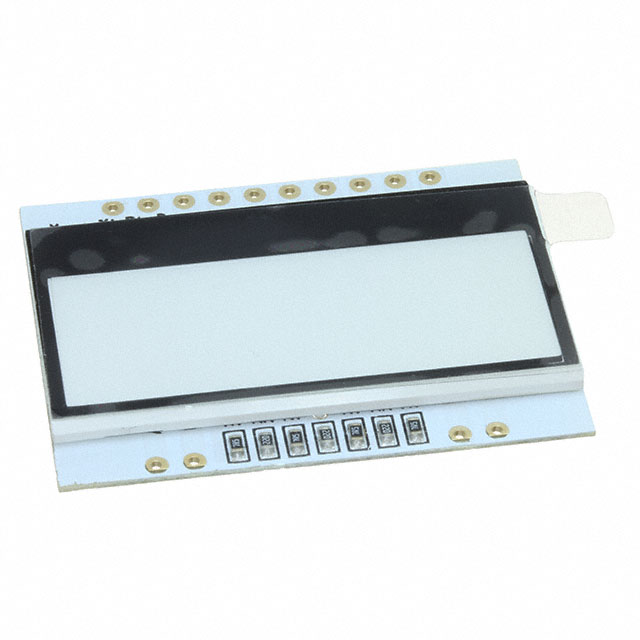

EA LED36X28-GR
ActiveDisplay Visions
LED BACKLIT F. EA DOGS104
Deep-Dive with AI
Search across all available documentation for this part.
EA LED36X28-GR
ActiveDisplay Visions
LED BACKLIT F. EA DOGS104
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EA LED36X28-GR |
|---|---|
| Color | Red, Yellow-Green |
| Current - Test | 45 mA |
| Current - Test [Max] | 60 mA |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 12.1 mm |
| Size / Dimension [z] | 2 mm |
| Style | Rectangular |
| Termination Style | Solder |
| Voltage - Forward (Vf) (Typ) | 2.1 V, 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.44 | |
| 10 | $ 6.43 | |||
| 100 | $ 5.25 | |||
| 500 | $ 4.74 | |||
| 1000 | $ 4.57 | |||
| 2000 | $ 4.43 | |||
Description
General part information
EALED36X28 Series
LED BACKLIT F. EA DOGS104
Documents
Technical documentation and resources
No documents available
